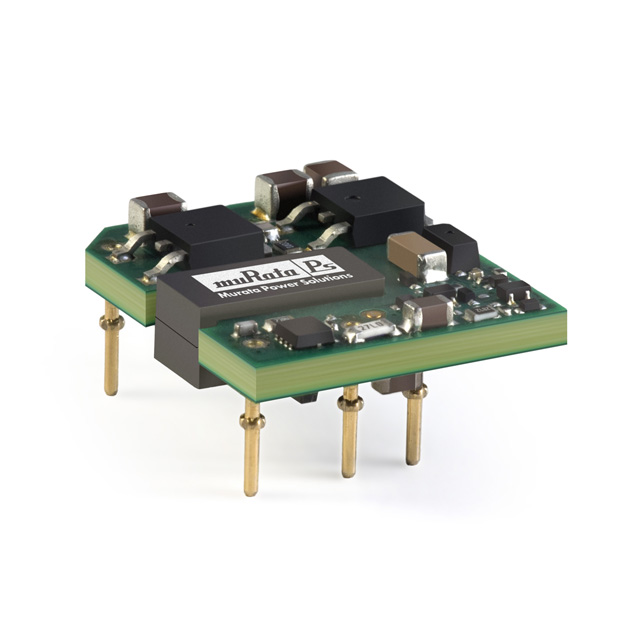

BEI15-120-Q12P-C

Active

Murata Power Solutions Inc.

DC-DC CONVERTER, 2 O/PV, 0.625A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC-DC CONVERTER, 2 O/PV, 0.625A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Voltage - Output 2	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Efficiency	Voltage - Input (Max) [Max]	Applications	Voltage - Isolation	Power (Watts)	Type	Package / Case
Murata Power Solutions Inc. BEI15-120-Q48P-C	Through Hole	12 V	85 °C	-40 °C	24.4 mm	8.9 mm	0.35 "	27.9 mm	0.96 in	1.1 "	18 V	-12 V	2	625 mA	625 mA	85.5 %	75 V	ITE (Commercial)	2250 VDC	15 W	Isolated Module	6-DIP Module
Murata Power Solutions Inc. BEI15-120-Q48N-C	Through Hole	12 V	85 °C	-40 °C	24.4 mm	8.9 mm	0.35 "	27.9 mm	0.96 in	1.1 "	18 V	-12 V	2	625 mA	625 mA	85.5 %	75 V	ITE (Commercial)	2250 VDC	15 W	Isolated Module	6-DIP Module
Murata Power Solutions Inc. BEI15-120-Q12P-C	Through Hole	12 V	85 °C	-40 °C	24.4 mm	8.9 mm	0.35 "	27.9 mm	0.96 in	1.1 "	9 V	-12 V	2	625 mA	625 mA	86 %	36 V	ITE (Commercial)	2000 V	15 W	Isolated Module	6-DIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DC-DC CONVERTER, 2 O/PV, 0.625A ROHS COMPLIANT: YES

Technical documentation and resources
