UM-QPJ-1.5-5
ActiveHirose Electric USA, Inc.
CONN UMC JACK STR 50OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UM-QPJ-1.5-5
ActiveHirose Electric USA, Inc.
CONN UMC JACK STR 50OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UM-QPJ-1.5-5 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | 1.5D-2V, 1.5D-HQEV, 1.5D-QEV |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | U.FL (UMCC) |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 2 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |

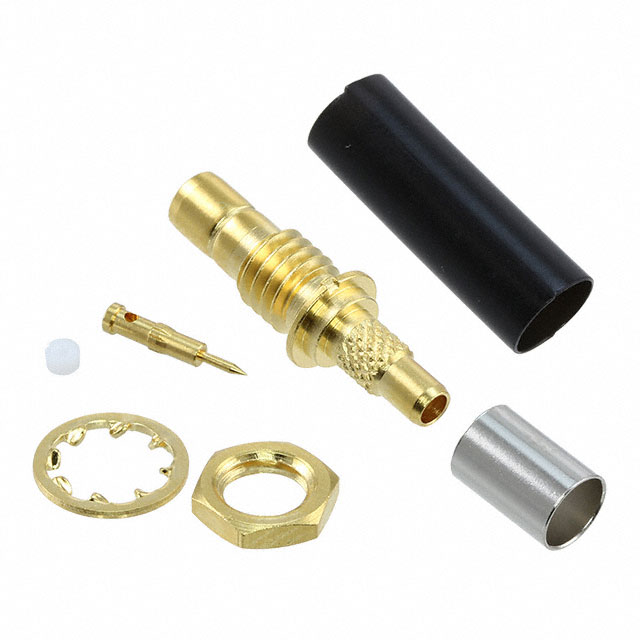

| Includes | 1 Heat Shrink, 1 Lockwasher, 1 Nut, 1 Connector |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 20 | $ 14.78 | |
Description
General part information
UM-QPJ-1 Series
U.FL (UMCC) Connector Jack, Male Pin 50 Ohms Panel Mount Solder
