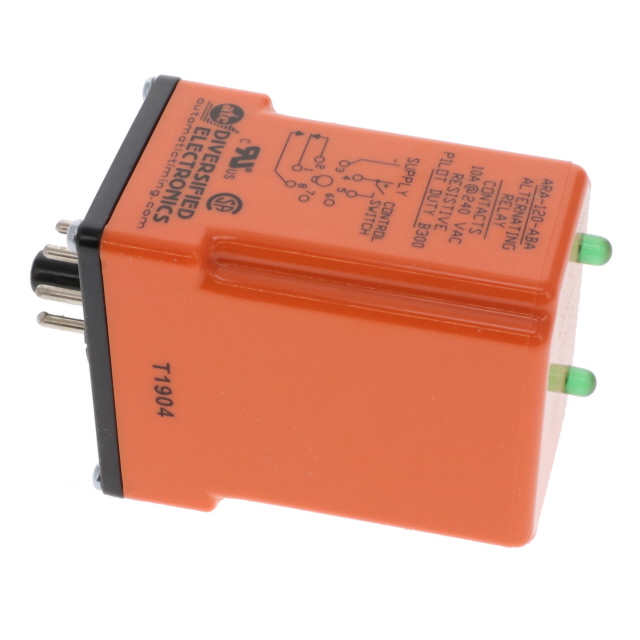

ARA-120-ABA
UnknownMueller Electric Co
DUPLEXOR
Deep-Dive with AI
Search across all available documentation for this part.
ARA-120-ABA
UnknownMueller Electric Co
DUPLEXOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ARA-120-ABA |
|---|---|
| Approval Agency | CSA, cURus |
| Coil Type | Non Latching |
| Coil Voltage | 120 VAC, 120 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching [Max] | 2400 VA |
| Mounting Type | Socketable |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Relay Type | General Purpose |
| Switching Voltage | 240 VAC |
| Termination Style | Plug In, 8 Pin (Octal) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 89.87 | |
Description
General part information
ARA-120 Series
General Purpose Relay SPDT (1 Form C) 120VAC/DC Coil Socketable
Documents
Technical documentation and resources
No documents available
