LTM8031IV#PBF
ActiveULTRALOW NOISE EMC 36V, 1A DC/DC ΜMODULE (POWER MODULE) REGULATOR
Deep-Dive with AI
Search across all available documentation for this part.
LTM8031IV#PBF
ActiveULTRALOW NOISE EMC 36V, 1A DC/DC ΜMODULE (POWER MODULE) REGULATOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTM8031IV#PBF |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1 A |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

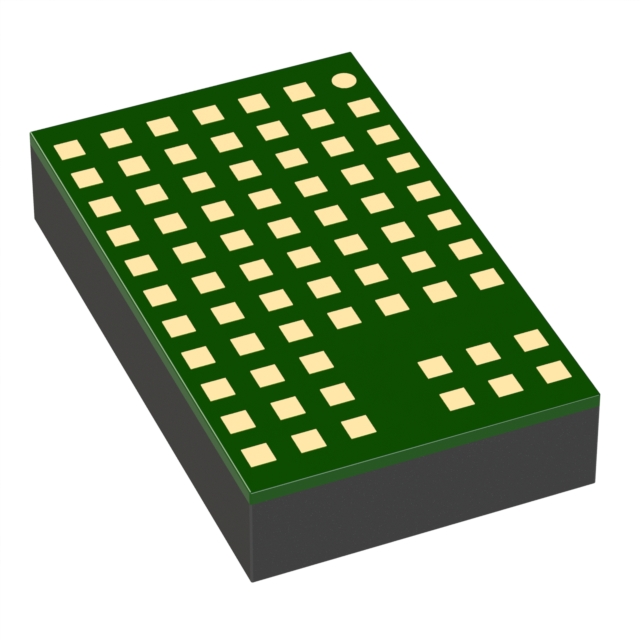

| Package / Case | 71-BLGA Module |
| Size / Dimension [x] | 15 mm |
| Size / Dimension [x] | 0.59 in |
| Size / Dimension [y] | 9 mm |
| Size / Dimension [y] | 0.35 " |
| Size / Dimension [z] | 0.11 in |
| Size / Dimension [z] | 2.8 mm |
| Supplier Device Package | 71-LGA (15x9) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 3.6 V |
| Voltage - Output 1 [Max] | 10 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 22.71 | |
| 5 | $ 21.41 | |||
| 10 | $ 20.87 | |||
| 25 | $ 20.18 | |||
| 40 | $ 19.84 | |||
| 80 | $ 19.34 | |||
| 230 | $ 18.61 | |||
| 440 | $ 18.17 | |||
Description
General part information
LTM8031 Series
The LTM8031 is an electromagnetic compatible (EMC) 36V, 1A DC/DC μModule®(power module) buck converter designed to meet the radiated emissions requirements of EN55022. Conducted emission requirements can be met by adding standard filter components. Included in the package are the switching controller, power switches, inductor, filters and all support components. Operating over an input voltage range of 3.6V to 36V, the LTM8031 supports an output voltage range of 0.8V to 10V, and a switching frequency range of 200kHz to 2.4MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design. The low profile package (2.82mm) enables utilization of unused space on the bottom of PC boards for high density point of load regulation.The LTM8031 is packaged in a thermally enhanced, compact (9mm × 15mm) and low profile (2.82mm) overmolded land grid array (LGA) package suitable for automated assembly by standard surface mount equipment. The LTM8031 is RoHS compliant.ApplicationsAutomotive Battery RegulationPower for Portable ProductsDistributed Supply RegulationIndustrial SuppliesWall Transformer Regulation
