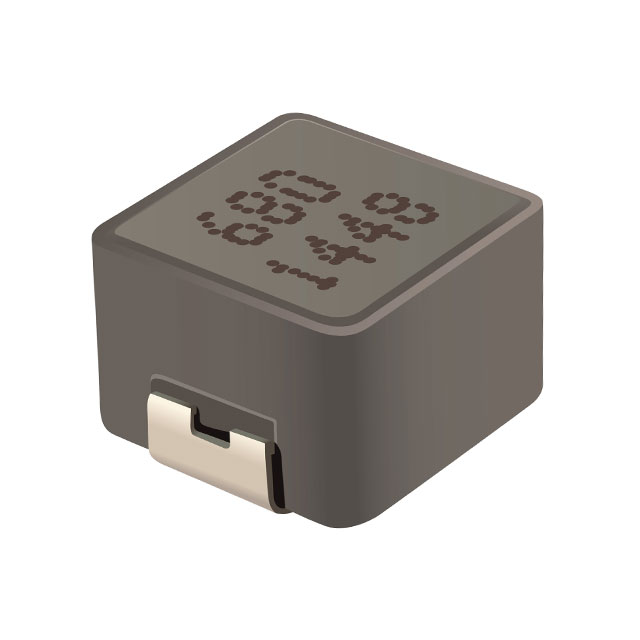

SRP7050TA-2R2M

Active

Bourns Inc.

INDUCTOR, 2.2UH, 10A, 20%, SHIELDED

Search across all available documentation for this part.

Active

Bourns Inc.

INDUCTOR, 2.2UH, 10A, 20%, SHIELDED

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Ratings	Tolerance	Shielding	Inductance	Inductance Frequency - Test	Frequency - Self Resonant	Q @ Freq	Package / Case	DC Resistance (DCR) [Max]	Mounting Type	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Material - Core	DC Resistance (DCR)	Current - Saturation (Isat)
Bourns Inc. SRP7050TA-3R3M	0.287 in	7.3 mm	6.6 mm	0.26 "	AEC-Q200	20 %	Shielded	3.3 µH	100 kHz	26 MHz	15 100 kHz	Nonstandard	20.9 mOhm	Surface Mount	8 A	0.197 in	5 mm	Drum Core Wirewound	Carbonyl Powder
Bourns Inc. SRP7050TA-2R2M	0.287 in	7.3 mm	6.6 mm	0.26 "	AEC-Q200	20 %	Shielded	2.2 µH	100 kHz	30 MHz	15 100 kHz	Nonstandard		Surface Mount	10 A	0.197 in	5 mm	Drum Core Wirewound	Carbonyl Powder	12 mOhm	14 A
Bourns Inc. SRP7050TA-150M	0.287 in	7.3 mm	6.6 mm	0.26 "	AEC-Q200	20 %	Shielded	15 µH	100 kHz	12 MHz	15 100 kHz	Nonstandard	92 mOhm	Surface Mount	3.5 A	0.197 in	5 mm	Drum Core Wirewound	Carbonyl Powder		6 A
Bourns Inc. SRP7050TA-220M	0.287 in	7.3 mm	6.6 mm	0.26 "	AEC-Q200	20 %	Shielded	22 µH	100 kHz	9 MHz	15 100 kHz	Nonstandard	170 mOhm	Surface Mount	2.5 A	0.197 in	5 mm	Drum Core Wirewound	Carbonyl Powder		5.5 A
Bourns Inc. SRP7050TA-470M	0.287 in	7.3 mm	6.6 mm	0.26 "	AEC-Q200	20 %	Shielded	47 µH	100 kHz	8 MHz	15 100 kHz	Nonstandard		Surface Mount	1.9 A	0.197 in	5 mm	Drum Core Wirewound	Carbonyl Powder	330 mOhm	2.7 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.2 µH Shielded Drum Core, Wirewound Inductor 10 A 12mOhm Max Nonstandard
