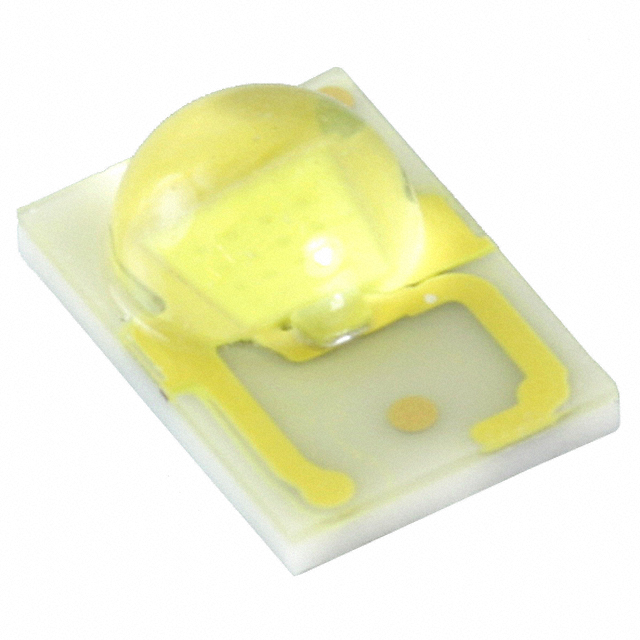

LXML-PWN1-0120

Active

Lumileds

SINGLE COLOR LED, NEUTRAL WHITE, 2.61MM, ROHS COMPLIANT PACKAGE-3

Search across all available documentation for this part.

Active

Lumileds

SINGLE COLOR LED, NEUTRAL WHITE, 2.61MM, ROHS COMPLIANT PACKAGE-3

Technical Specifications

Parameters and characteristics for this part

Specification	LXML-PWN1-0120

CCT (K) [Max]	4500 K
CCT (K) [Min]	3500 K
Color	Neutral, White
Current - Max [Max]	1 A
Current - Test	350 mA
Flux @ 25°C, Current - Test	124 lm
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Lumens/Watt @ Current - Test	118 lm/W
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Size / Dimension [x]	0.177 in
Size / Dimension [x]	4.49 mm
Size / Dimension [y]	3.05 mm
Size / Dimension [y]	0.12 "
Thermal Resistance of Package [diameter]	10 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3 V

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Luminous Flux @ Current/Temperature	Wavelength	Lumens/Watt @ Current - Test	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Color	Mounting Type	Current - Test	Thermal Resistance of Package [diameter]	Flux @ 25°C, Current - Test	CCT (K) [Max]	CCT (K) [Min]	Supplier Device Package	Wavelength [Max]	Wavelength [Min]	Temperature - Test
Lumileds LXML-PB01-0023	2.1 mm	0.083 "	1 A	28 lm	473 nm	27 lm/W	1812 (4532 Metric)	0.177 in	3.05 mm	0.12 "	4.49 mm	125 °	2.95 V	Blue	Surface Mount	350 mA
Lumileds LXML-PH01-0060	2.1 mm	0.083 "	700 mA	62 lm	615 nm	61 lm/W	1812 (4532 Metric)	0.177 in	3.05 mm	0.12 "	4.49 mm	125 °	2.9 V	Red-Orange	Surface Mount	350 mA
Lumileds LXML-PWN1-0120	2.1 mm	0.083 "	1 A			118 lm/W	1812 (4532 Metric)	0.177 in	3.05 mm	0.12 "	4.49 mm	120 °	3 V	Neutral White	Surface Mount	350 mA	10 °C/W	124 lm	4500 K	3500 K
Lumileds LXML-PM01-0090	2.1 mm	0.083 "	1 A	95 lm	530 nm	94 lm/W	1812 (4532 Metric)	0.177 in	3.05 mm	0.12 "	4.49 mm	125 °	2.9 V	Green	Surface Mount	350 mA	10 °C/W				SMD
Lumileds LXML-PF01	2.1 mm	0.083 "	700 mA	260 mW			1812 (4532 Metric)	0.177 in	3.05 mm	0.12 "	4.49 mm	125 °	1.8 V	Red	Surface Mount	350 mA
Lumileds LXML-PM01-0130	2.1 mm	0.083 "	1 A	102 lm	530 nm	91 lm/W	1812 (4532 Metric)	0.177 in	3.05 mm	0.12 "	4.49 mm	125 °	3.21 V	Green	Surface Mount	350 mA						540 nm	520 nm	85 °C
Lumileds LXML-PB02-0100	2.1 mm	0.083 "					1812 (4532 Metric)	0.177 in	3.05 mm	0.12 "	4.49 mm				Surface Mount						SMD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Deliver more usable light and higher flux density

Optimize applications to reduce size and cost

Small footprint to tightly pack the LEDs for mixing
