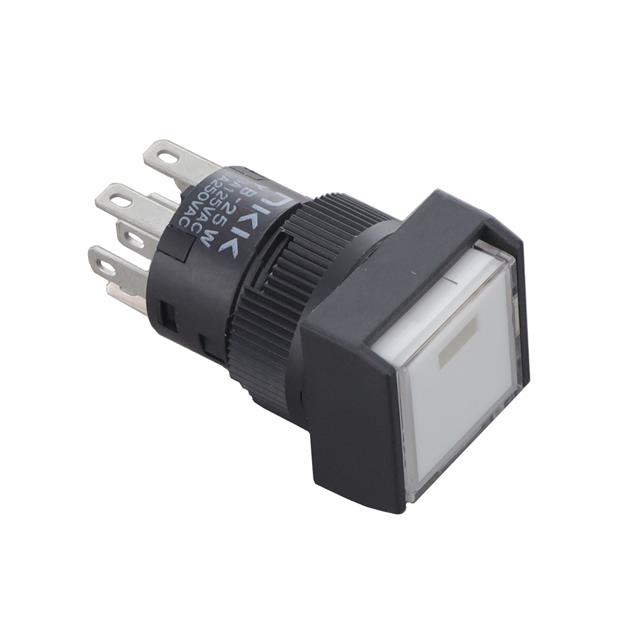

YB25WSKW01-1CF02-JB

Obsolete

NKK Switches

SHORT BODY PUSHBUTTON/ILLUMINATE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB25WSKW01-1CF02-JB

Obsolete

NKK Switches

SHORT BODY PUSHBUTTON/ILLUMINATE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB25WSKW01-1CF02-JB

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Voltage Reduction Lighting
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	2 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB25WS Series

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Color - Actuator/Cap	Actuator Type	Actuator Marking	Circuit	Ingress Protection	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Illumination Voltage (Nominal)	Type	Illumination Type, Color	Switch Function	Features	Mounting Type	Termination Style	Termination Style	Termination Style	Mechanical Life	Current Rating (Amps)
NKK Switches YB25WSKG01-1D05-JB	16 mm	28 V	Clear	Button Square	No Marking	DPDT	IP65 - Dust Tight Water Resistant	100000 Cycles	50 °C	-25 °C	28 V	5 VDC	Illuminated Standard	Amber LED	On-Mom	Voltage Reduction Lighting	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	0.4 VA
NKK Switches YB25WSKW01-5D05-JD	16 mm	30 V	Clear	Button Square		DPDT	IP65 - Dust Tight Water Resistant	100000 Cycles	50 °C	-25 °C	125 V	2 VDC	Illuminated Standard	Amber LED	On-Mom		Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	3 A
NKK Switches YB25WSKW01/UC	16 mm	30 V		Plunger for Cap	No Marking	DPDT	IP65 - Dust Tight Water Resistant	100000 Cycles	70 °C	-25 °C	125 V		Standard		On-Mom	Voltage Reduction Lighting	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	3 A
NKK Switches YB25WSKW01-1C24-JC	16 mm	30 V	Clear (Red Filter/Diffuser)	Button Square	No Marking	DPDT	IP65 - Dust Tight Water Resistant	100000 Cycles	50 °C	-25 °C	125 V	24 V	Illuminated Standard	LED Red	On-Mom	Voltage Reduction Lighting	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	3 A
NKK Switches YB25WSKW01-6G-JB	16 mm	30 V	Clear	Button Square	No Marking	DPDT	IP65 - Dust Tight Water Resistant	100000 Cycles	50 °C	-25 °C	125 V	3.6 VDC	Illuminated Standard	Blue LED	On-Mom	Voltage Reduction Lighting	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	3 A
NKK Switches YB25WSKW01-1F24-JF	16 mm	30 V	Clear	Button Square	No Marking	DPDT	IP65 - Dust Tight Water Resistant	100000 Cycles	50 °C	-25 °C	125 V	24 V	Illuminated Standard	Green LED	On-Mom	Voltage Reduction Lighting	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	3 A
NKK Switches YB25WSKW01-1F05-JB	16 mm	30 V	Clear	Button Square	No Marking	DPDT	IP65 - Dust Tight Water Resistant	100000 Cycles	50 °C	-25 °C	125 V	5 VDC	Illuminated Standard	Green LED	On-Mom	Voltage Reduction Lighting	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	3 A
NKK Switches YB25WSKW01-5D12-JD	16 mm	30 V	Clear	Button Square	No Marking	DPDT	IP65 - Dust Tight Water Resistant	100000 Cycles	50 °C	-25 °C	125 V	12 VDC	Illuminated Standard	Amber LED	On-Mom	Voltage Reduction Lighting	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	3 A
NKK Switches YB25WSKG01-5F12-JF	16 mm	28 V	Clear	Button Square	No Marking	DPDT	IP65 - Dust Tight Water Resistant	100000 Cycles	50 °C	-25 °C	28 V	12 VDC	Illuminated Standard	Green LED	On-Mom	Voltage Reduction Lighting	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	0.4 VA
NKK Switches YB25WSKW01-1CF02-JB	16 mm	30 V	Clear	Button Square	No Marking	DPDT	IP65 - Dust Tight Water Resistant	100000 Cycles	70 °C	-25 °C	125 V	2 VDC	Illuminated Standard	Green/Red LED	On-Mom	Voltage Reduction Lighting	Panel Mount Front		Solder Lug		1000000 Cycles	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1	$ 30.77
		5	$ 27.44
		10	$ 26.51
		25	$ 25.05
		50	$ 23.31
		100	$ 20.65
		250	$ 18.52

Description

General part information

YB25WS Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
