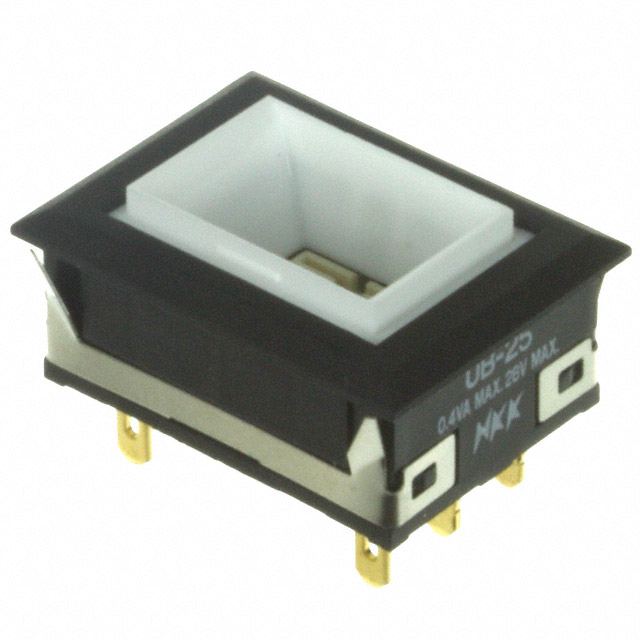

UB25NKG01N
ActiveNKK Switches
SWITCH PUSH DPDT 0.4VA 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UB25NKG01N
ActiveNKK Switches
SWITCH PUSH DPDT 0.4VA 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UB25NKG01N |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | DPDT |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 200000 Cycles |
| Features | Spot LED |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 22.4 mm |
| Panel Cutout Dimensions [y] | 16.2 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UB25NKG Series
Pushbutton Switch DPDT Standard Panel Mount, Snap-In
