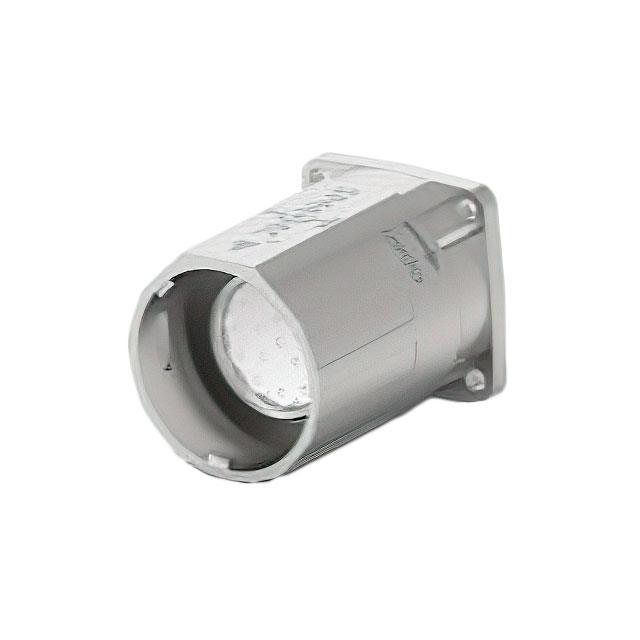

ADA014N00000101000
ActiveTE Intercontec
CONN PLG HSG FMALE 17POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ADA014N00000101000
ActiveTE Intercontec
CONN PLG HSG FMALE 17POS PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ADA014N00000101000 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Fastening Type | Push-Twist |
| Features | Coupling Nut |
| Housing Color | Silver |
| Includes | 1 Connector, 1 O-Ring |
| Ingress Protection | IP66/IP67 |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.66 | |
| 10 | $ 16.18 | |||
| 40 | $ 15.11 | |||
| 80 | $ 13.33 | |||
| 280 | $ 12.44 | |||
| 520 | $ 12.18 | |||
Description
General part information
ADA01 Series
17 Position Circular Connector Plug Housing Panel Mount Coupling Nut
