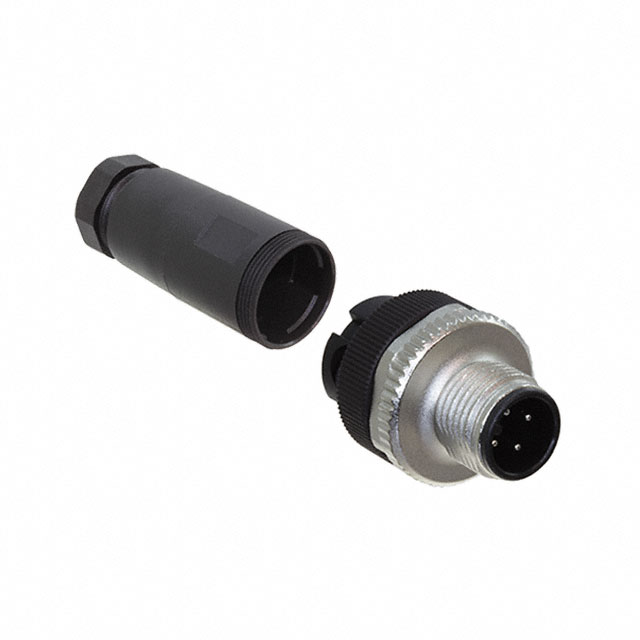

V1S-G-PG9

Active

PEPPERL+FUCHS

CONN PLUG MALE 4P COPPER SCREW

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

CONN PLUG MALE 4P COPPER SCREW

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Backshell Material, Plating	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Shell Material	Contact Finish - Mating	Shell Size - Insert	Current Rating (Amps)	Material Flammability Rating	Voltage Rating	Ingress Protection	Orientation	Applications	Contact Material	Mounting Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Shielding	Features	Color	Connector Type	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Shell Finish
PEPPERL+FUCHS V1S-G-Q3	IDC	Nylon 6/6 Polyamide (PA66)	6 mm	0.138 in 0.236 in	3.5 mm	Polyamide (PA66) Nylon 6/6	Gold	M12-4	4 A	UL94 V-0	125 VDC	IP65 IP67	Keyed	Industrial Automation	Copper Tin	Free Hanging (In-Line)	4	-25 °C	80 C	Plastic	Unshielded	Backshell	Black	Male Pins Plug
PEPPERL+FUCHS V1S-G-PG9	Screw	Nylon Polyamide (PA)				Copper Zinc	Copper Tin Zinc	M12-4	4 A		250 VAC	IP67 - Dust Tight Waterproof	Keyed	Industrial Automation	Copper Zinc	Free Hanging (In-Line)	4	-25 °C	85 °C	Metal	Unshielded	Backshell	Black Silver	Male Pins Plug	8 mm	6 mm	0.315 in	0.236 in
PEPPERL+FUCHS V1S-G-Q2	IDC	Nylon 6/6 Polyamide (PA66)				Zinc Die Cast	Gold	M12-4	4 A	UL94 V-0	250 VDC	IP65 IP67	Keyed	Industrial Automation	Copper Tin	Free Hanging (In-Line)	4	-25 °C	80 C	Metal	Unshielded	Backshell	Black Silver	Male Pins Plug	8 mm	4 mm	0.315 in	0.157 in	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins Screw
