E2032S.30.10

Active

Prysmian Group

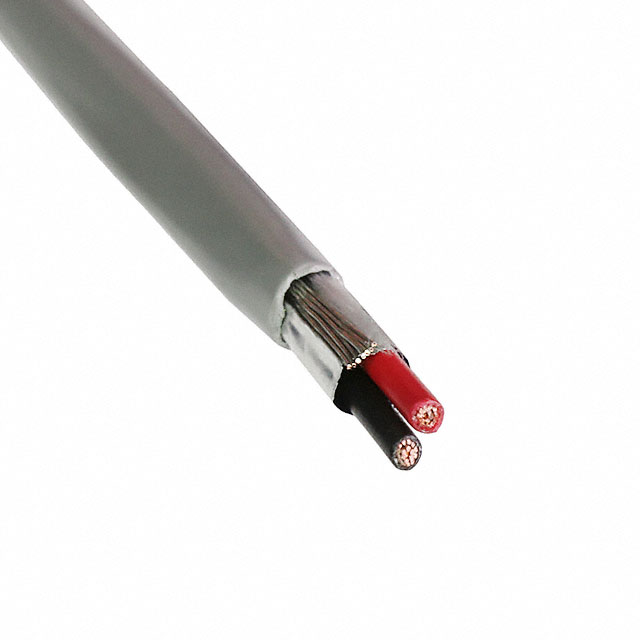

CABLE 2COND 18AWG GRAY SHLD 100'

Deep-Dive with AI

Search across all available documentation for this part.

E2032S.30.10

Active

Prysmian Group

CABLE 2COND 18AWG GRAY SHLD 100'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	E2032S.30.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	4.04 mm
Jacket (Insulation) Diameter [diameter]	0.159 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	18 AWG

E2032S Series

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket (Insulation) Material	Length [x]	Length [x]	Features	Conductor Strand [custom]	Conductor Strand [custom]	Length	Shield Coverage	Wire Gauge	Conductor Material	Shield Type	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Voltage	Shield Material	Usage	Number of Conductors	Length
Prysmian Group E2032S.18.10	4.04 mm	0.159 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	50 ft 500 '	152.4 m	Drain Wire Rip Cord	26 AWG	7	15.24 m	100 %	18 AWG	Copper Bare	Foil	Gray	0.015 in	0.381 mm	Multi-Conductor	300 V	Flexfoil®	Alarm Security Sound	2
Prysmian Group E2032S.25.10	4.04 mm	0.159 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	Drain Wire Rip Cord	26 AWG	7		100 %	18 AWG	Copper Bare	Foil	Gray	0.015 in	0.381 mm	Multi-Conductor	300 V	Flexfoil®	Alarm Security Sound	2
Prysmian Group E2032S.41.10	4.04 mm	0.159 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	50 ft 500 '	152.4 m	Drain Wire Rip Cord	26 AWG	7	15.24 m 304.8 m	100 %	18 AWG	Copper Bare	Foil	Gray	0.015 in	0.381 mm	Multi-Conductor	300 V	Flexfoil®	Alarm Security Sound	2	1000 ft
Prysmian Group E2032S.30.10	4.04 mm	0.159 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	100 ft	30.5 m	Drain Wire Rip Cord	26 AWG	7	304.8 m	100 %	18 AWG	Copper Bare	Foil	Gray	0.015 in	0.381 mm	Multi-Conductor	300 V	Flexfoil®	Alarm Security Sound	2	1000 ft
Prysmian Group E2032S.46.10	4.04 mm	0.159 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)			Drain Wire Rip Cord	26 AWG	7		100 %	18 AWG	Copper Bare	Foil	Gray	0.015 in	0.381 mm	Multi-Conductor	300 V	Flexfoil®	Alarm Security Sound	2
Prysmian Group E2032S.43.07	4.04 mm	0.159 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	2000 ft	609.6 m	Drain Wire Rip Cord	26 AWG	7		100 %	18 AWG	Copper Bare	Foil	Blue	0.015 in	0.381 mm	Multi-Conductor	300 V	Flexfoil®	Alarm Security Sound	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 245.28
		2	$ 233.31
		3	$ 226.55
		5	$ 218.26
		7	$ 212.93
		10	$ 207.41
		25	$ 193.74
		50	$ 183.89

Description

General part information

E2032S Series

2 Conductor Multi-Conductor Cable Gray 18 AWG Foil 1000.0' (304.8m)
