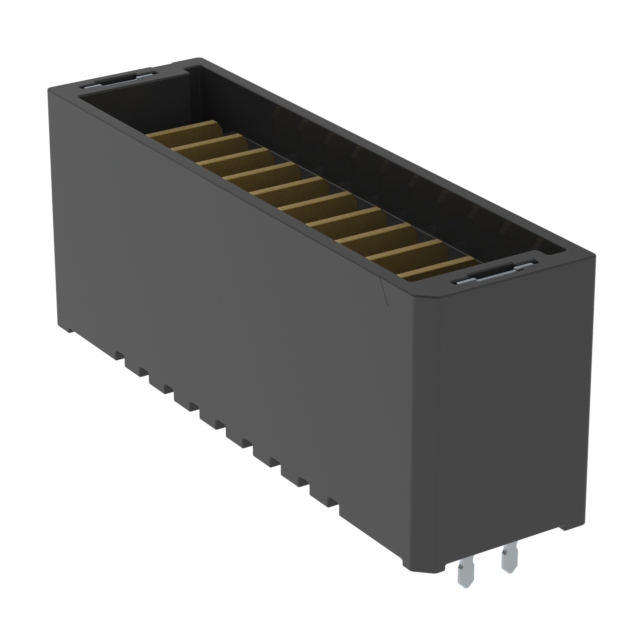

UMPT-10-07.5-L-V-S-W-TR

Active

Samtec Inc.

CONN HDR 10POS 2.00MM SMD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UMPT-10-07.5-L-V-S-W-TR

Active

Samtec Inc.

CONN HDR 10POS 2.00MM SMD SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UMPT-10-07.5-L-V-S-W-TR

Color	Black
Connector Type	Male Blades, Header
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Features	Solder Retention
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder
Voltage Rating	650 V

UMPT-10 Series

Part	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Mounting Type	Termination	Number of Positions	Number of Rows	Connector Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Pitch [x]	Pitch [x]	Color	Features	Fastening Type
Samtec Inc. UMPT-10-07.5-L-V-S-TR	650 V	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Surface Mount	Solder	10	1	Header Male Blades	Gold	10 Áin	0.25 Ám	Copper Alloy	0.079 in	2 mm	Black
Samtec Inc. UMPT-10-01-S-RA-WT-TR				Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Solder	10	1	Header Male Blades	Gold	30 Áin	0.76 Ám	Copper Alloy	0.079 in	2 mm	Black	Solder Retention
Samtec Inc. UMPT-10-01-L-RA-WT-TR				Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Solder	10	1	Header Male Blades	Gold	10 Áin	0.25 Ám	Copper Alloy	0.079 in	2 mm	Black	Solder Retention
Samtec Inc. UMPT-10-12.5-L-V-S-TR	650 V	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Surface Mount	Solder	10	1	Header Male Blades	Gold	10 Áin	0.25 Ám	Copper Alloy	0.079 in	2 mm	Black
Samtec Inc. UMPT-10-01.5-L-V-S-TR	650 V	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Surface Mount	Solder	10	1	Header Male Blades	Gold	10 Áin	0.25 Ám	Copper Alloy	0.079 in	2 mm	Black
Samtec Inc. UMPT-10-01-T-RA-WT-TR				Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Solder	10	1	Header Male Blades	Tin			Copper Alloy	0.079 in	2 mm	Black	Solder Retention
Samtec Inc. UMPT-10-02.5-L-V-S-TR	650 V	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Surface Mount	Solder	10	1	Header Male Blades	Gold	10 Áin	0.25 Ám	Copper Alloy	0.079 in	2 mm	Black
Samtec Inc. UMPT-10-07.5-L-V-S-W-TR	650 V	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Surface Mount	Solder	10	1	Header Male Blades	Gold	10 Áin	0.25 Ám	Copper Alloy	0.079 in	2 mm	Black	Solder Retention
Samtec Inc. UMPT-10-01-L-RA-WT-P-TR				Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Solder	10	1	Header Male Blades	Gold	10 Áin	0.25 Ám	Copper Alloy	0.079 in	2 mm	Black	Solder Retention	Latch Lock
Samtec Inc. UMPT-10-06.5-L-V-S-TR	650 V	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Surface Mount	Solder	10	1	Header Male Blades	Gold	10 Áin	0.25 Ám	Copper Alloy	0.079 in	2 mm	Black
