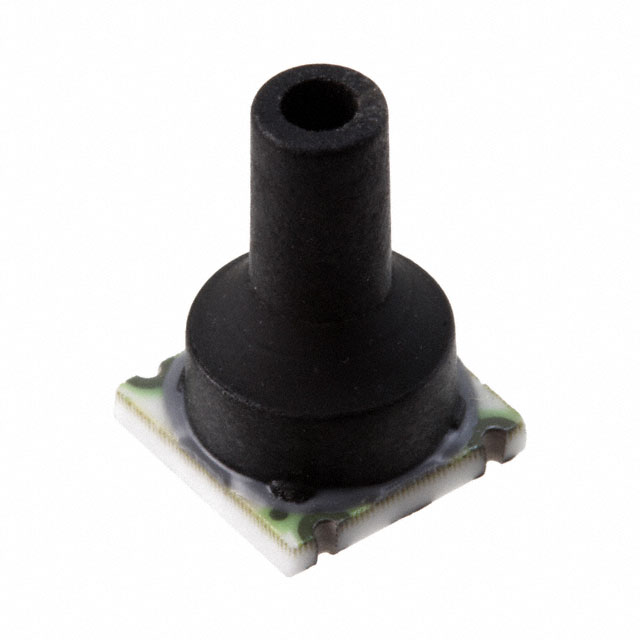

TBPLANN030PGUCV
ActiveHoneywell Sensing and Productivity Solutions
SENSOR 30PSIG 0.11" .0275V 6SMT
Deep-Dive with AI
Search across all available documentation for this part.
TBPLANN030PGUCV
ActiveHoneywell Sensing and Productivity Solutions
SENSOR 30PSIG 0.11" .0275V 6SMT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TBPLANN030PGUCV |
|---|---|
| Accuracy | 0.15 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure | 115 PSI |
| Maximum Pressure | 792.9 kPa |
| Mounting Type | Surface Mount |
| Operating Pressure | 206.84 kPa |
| Operating Pressure | 30 PSI |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Wheatstone Bridge |
| Package / Case | No Lead, Top Port, 6-SMD |
| Port Size | 0.11 ", 2.74 mm |
| Port Style | Barbed |
| Pressure Type | Vented Gauge |
| Supplier Device Package | 6-SMT |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply [Max] | 12 V |
| Voltage - Supply [Min] | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TBPLANN Series
Pressure Sensor 30PSI (206.84kPa) Vented Gauge Male - 0.11" (2.74mm) Tube 0 mV ~ 27.5 mV (5V) 6-SMD, No Lead, Top Port
