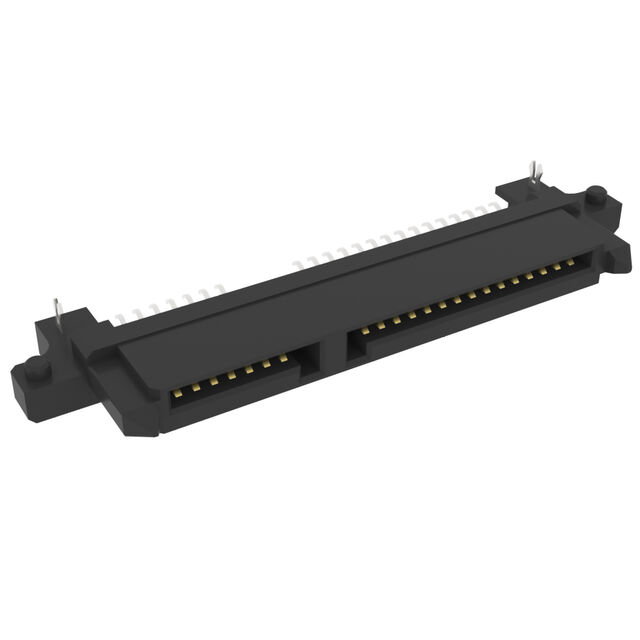

10031569-501TRLF

Active

Amphenol ICC (FCI)

SATA RECEP TOP MOUNT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

SATA RECEP TOP MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Finish	Termination	Connector Type	Mounting Type	Features	Connector Style
Amphenol ICC (FCI) 10031569-001LF	0.76 Ám	30 Áin	22 positions	Gold	Solder	SATA	Surface Mount Right Angle	Board Guide Board Lock	Receptacle
Amphenol ICC (FCI) 10031569-502CLF	0.76 Ám	30 Áin	22 positions	Gold	Solder	SATA	Surface Mount Right Angle	Board Guide Board Lock	Receptacle
Amphenol ICC (FCI) 10031569-501TRLF	0.38 µm	15 µin	22 positions	Gold	Solder	SATA	Surface Mount Right Angle	Board Guide Board Lock	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2750	$ 2.78

General part information

22 Position SATA Receptacle Connector Solder Surface Mount, Right Angle

Technical documentation and resources
