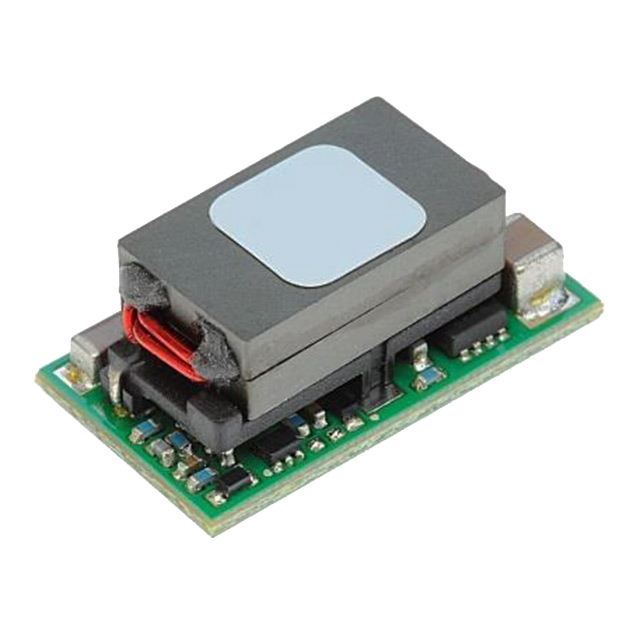

IND045W
OmniOn Power™
DC DC CONVERTER 3-9V 45W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IND045W
OmniOn Power™
DC DC CONVERTER 3-9V 45W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IND045W |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | 93.3 % |
| Features | OCP, Remote On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SMD Module |
| Power (Watts) | 45 W |
| Size / Dimension [x] | 20.3 mm |
| Size / Dimension [x] | 0.8 " |
| Size / Dimension [y] | 0.45 in |
| Size / Dimension [y] | 11.4 mm |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.33 in |
| Supplier Device Package | 6-SMD |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14.4 V |
| Voltage - Input (Min) [Min] | 9.6 V |
| Voltage - Output 1 [Max] | 9 V |
| Voltage - Output 1 [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 16.55 | |
| 1 | $ 16.55 | |||
| Digi-Reel® | 1 | $ 16.55 | ||
| 1 | $ 16.55 | |||
| Tape & Reel (TR) | 250 | $ 13.79 | ||
| 250 | $ 13.79 | |||
Description
General part information
IND045 Series
Non-Isolated PoL Module DC DC Converter 1 Output 3 ~ 9V 5A 9.6V - 14.4V Input
