AS23AB

Active

NKK Switches

SWITCH: SLIDE; POS: 3; DP3T; 0.1A/28VAC; 0.1A/28VDC; ON-OFF-ON; AS

Search across all available documentation for this part.

Active

NKK Switches

SWITCH: SLIDE; POS: 3; DP3T; 0.1A/28VAC; 0.1A/28VDC; ON-OFF-ON; AS

Technical Specifications

Parameters and characteristics for this part

Specification	AS23AB

Actuator Length [x]	2.5 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Type	Standard
Circuit	DPDT
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Timing	Non-Shorting
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Through Hole
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off-On
Switch Travel	2.5 mm
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Operating Force	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Circuit	Contact Timing	Voltage Rating - DC	Contact Finish	Contact Material	Features	Actuator Material	Termination Style	Electrical Life	Current Rating (Amps)	Switch Function	Switch Travel	Actuator Type	Actuator Length [x]	Voltage Rating - AC
NKK Switches AS23AB	260 gf	-30 ░C	85 °C	Through Hole	DPDT	Non-Shorting	28 V	Gold	Phosphor Bronze	Epoxy Sealed Terminals	Glass Filled Nylon Polyamide (PA)	PC Pin	50000 Cycles	0.4 VA	On-Off-On	2.5 mm	Standard	2.5 mm	28 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

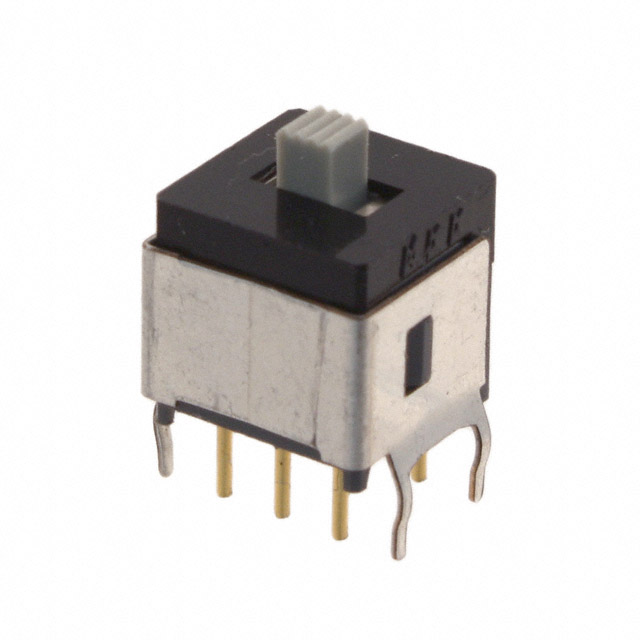

Slide Switch DPDT Through Hole
