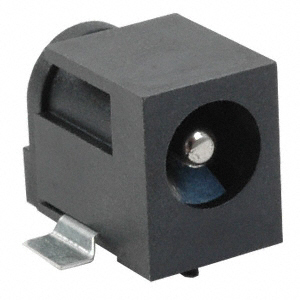

PJ-036BH-SMT-TR
ActiveCUI Devices
CONN PWR JACK 2.5X5.5MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJ-036BH-SMT-TR
ActiveCUI Devices
CONN PWR JACK 2.5X5.5MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-036BH-SMT-TR |
|---|---|
| Actual Diameter [diameter] | 2.5 mm, 6.3 mm |
| Actual Diameter [diameter] | 0.098 in, 0.248 in |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy, Brass |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 5 A |
| Gender | Male |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.098 ", 0.217 " |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth | 0.36 in |
| Mating Length/Depth | 9.15 mm |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 24 VDC |
PJ-036 Series
| Part | Voltage - Rated | Mounting Type | Number of Positions/Contacts | Material Flammability Rating | Shielding | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Contact Material - Plating [custom] | Housing Material | Actual Diameter [diameter] | Actual Diameter | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Mating Length/Depth | Mating Length/Depth | Internal Switch(s) | Body Color | Termination | Connector Type | Gender | Contact Material | Actual Diameter [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Devices | 24 VDC | Surface Mount Right Angle | 2 Conductors 3 Conductors | UL94 V-0 | Unshielded | 0.083 in 0.217 " | 2.1 mm 5.5 mm | Silver | Polyamide (PA6T) Nylon 6T | 0.079 in 0.248 in | 2 mm 6.3 mm | -25 °C | 85 °C | 5 A | 0.36 in | 9.15 mm | Normally Closed Single Switch | Black | Solder | Jack | Male | Brass Copper Alloy | ||
CUI Devices | 24 VDC | Surface Mount Right Angle | 2 Conductors 3 Conductors | UL94 V-0 | Unshielded | 0.098 " 0.217 " | 2.5 mm 5.5 mm | Silver | Polyamide (PA6T) Nylon 6T | 0.098 in 0.248 in | -25 °C | 85 °C | 5 A | 0.36 in | 9.15 mm | Normally Closed Single Switch | Black | Solder | Jack | Male | Brass Copper Alloy | 2.5 mm 6.3 mm | ||
CUI Devices | 24 VDC | Through Hole Right Angle | 2 Conductors 3 Conductors | UL94 V-0 | Unshielded | 0.039 " 0.134 " | 1 mm 3.4 mm | Silver | 0.039 in 0.15 " | 1 mm 3.8 mm | -25 °C | 85 °C | 3.5 A | 0.252 in | 6.4 mm | Normally Closed Single Switch | Black | Solder | Jack | Male | Brass Copper Alloy | Board Guide |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.45 | |
| 10 | $ 1.26 | |||
| 25 | $ 1.21 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.13 | |||
| Digi-Reel® | 1 | $ 1.45 | ||
| 10 | $ 1.26 | |||
| 25 | $ 1.21 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.13 | |||
| Tape & Reel (TR) | 200 | $ 1.13 | ||
| 400 | $ 1.02 | |||
| 600 | $ 0.94 | |||
| 1000 | $ 0.80 | |||
| 2000 | $ 0.78 | |||
| 5000 | $ 0.71 | |||
| 10000 | $ 0.70 | |||
Description
General part information
PJ-036 Series
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Surface Mount, Right Angle
