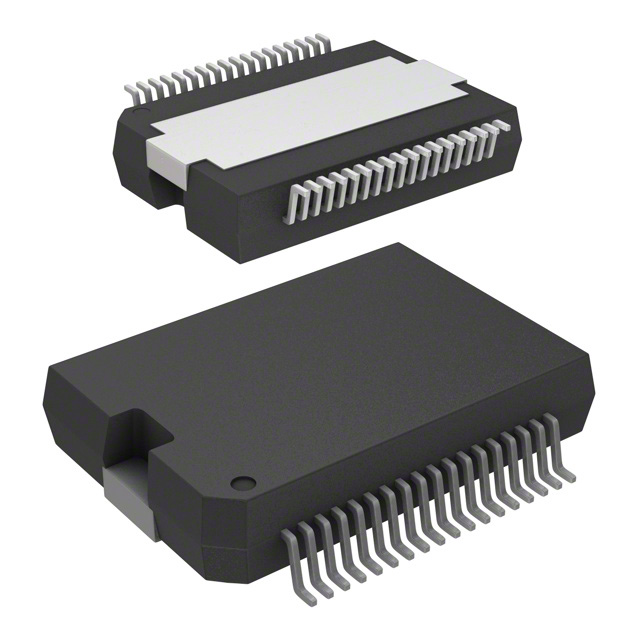

TDF8599ATH/N2CS

Active

Freescale Semiconductor - NXP

IC AMP D MONO/STEREO 250W 36HSOP

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

IC AMP D MONO/STEREO 250W 36HSOP

Technical Specifications

Parameters and characteristics for this part

Specification	TDF8599ATH/N2CS

Features	I2C, Mute, Differential Inputs, Depop, Short-Circuit and Thermal Protection
Max Output Power x Channels @ Load	1, 2, 250 W, 135 W
Mounting Type	Surface Mount
Output Type	1-Channel (Mono) or 2-Channel (Stereo)
Package / Case	0.433 in, 11 mm
Package / Case	Exposed Pad, 36-BSSOP
Supplier Device Package	36-HSOP
Type	Class D
Voltage - Supply [Max]	35 V
Voltage - Supply [Min]	8 V

Part	Type	Output Type	Max Output Power x Channels @ Load	Features	Mounting Type	Supplier Device Package	Package / Case	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Freescale Semiconductor - NXP TDF8599BTH/N1CY	Class D	1-Channel (Mono) or 2-Channel (Stereo)	70 W 150 W	Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection	Surface Mount	36-HSOP	0.433 in 11 mm	36-BSSOP Exposed Pad
Freescale Semiconductor - NXP TDF8599CTH/N1,118	Class D	1-Channel (Mono) or 2-Channel (Stereo)	155 W 300 W	Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection Standby	Surface Mount	36-HSOP	0.433 in 11 mm	36-BSSOP Exposed Pad	8 V	48 V	85 °C	-40 °C
Freescale Semiconductor - NXP TDF8599ATH/N2CS	Class D	1-Channel (Mono) or 2-Channel (Stereo)	1 2 135 W 250 W	Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection	Surface Mount	36-HSOP	0.433 in 11 mm	36-BSSOP Exposed Pad	8 V	35 V
Freescale Semiconductor - NXP TDF8599ATH/N2/S6CY	Class D	1-Channel (Mono) or 2-Channel (Stereo)	1 2 135 W 250 W	Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection	Surface Mount	36-HSOP	0.433 in 11 mm	36-BSSOP Exposed Pad	8 V	35 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	720	$ 26.87

General part information

Amplifier IC 1-Channel (Mono) or 2-Channel (Stereo) Class D 36-HSOP

Technical documentation and resources

No documents available
