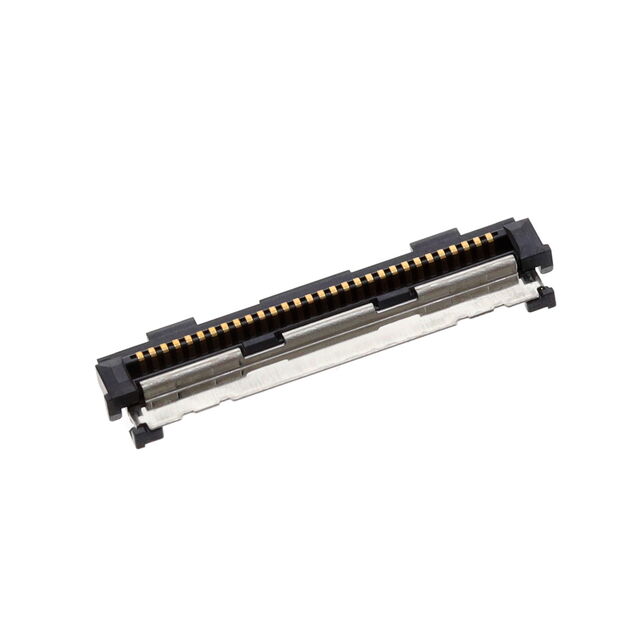

DF80D-30P-0.5SD(51)
ActiveHirose Electric USA, Inc.
CONN PLUG 30POS SOLDER GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF80D-30P-0.5SD(51)
ActiveHirose Electric USA, Inc.
CONN PLUG 30POS SOLDER GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF80D-30P-0.5SD(51) |
|---|---|
| Cable Termination | Solder |
| Color | Black |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.97 Áin |
| Contact Finish Thickness | 0.05 Ám |
| Contact Type | Outer Shroud Contact |
| Fastening Type | Latch Lock |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 30 |
| Number of Rows | 1 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Wire Gauge [Max] | 36 AWG, 46 AWG |
| Wire Gauge [Min] | 40 AWG, 32 AWG |
| Wire Type | Discrete or Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.44 | |
| 10 | $ 1.21 | |||
| 25 | $ 1.16 | |||
| 50 | $ 1.14 | |||
| 100 | $ 1.09 | |||
| 250 | $ 0.99 | |||
| 500 | $ 0.89 | |||
| 1000 | $ 0.79 | |||
| 2500 | $ 0.72 | |||
| Digi-Reel® | 1 | $ 1.44 | ||
| 10 | $ 1.21 | |||
| 25 | $ 1.16 | |||
| 50 | $ 1.14 | |||
| 100 | $ 1.09 | |||
| 250 | $ 0.99 | |||
| 500 | $ 0.89 | |||
| 1000 | $ 0.79 | |||
| 2500 | $ 0.72 | |||
| Tape & Reel (TR) | 5000 | $ 0.50 | ||
Description
General part information
DF80D Series
30 Position Rectangular Plug Connector Solder Gold 32-36 AWG, 40-46 AWG
