173-61400

Active

HELLERMANNTYTON

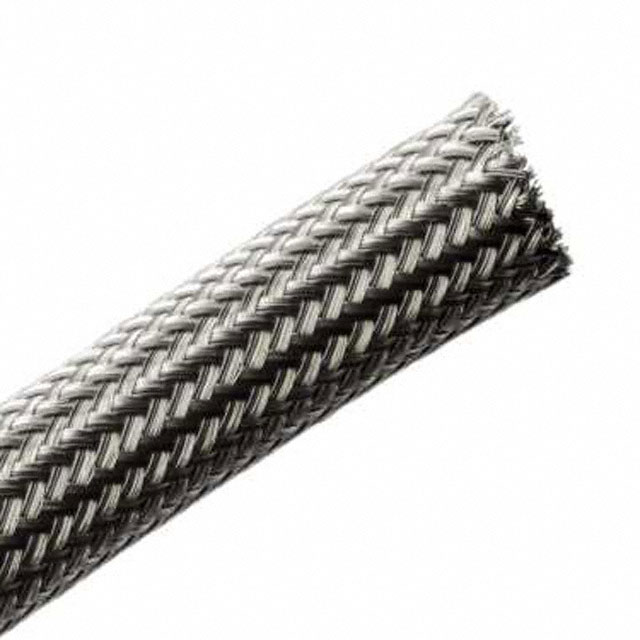

SLEEVING 0.551" X 328' SLVR/BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterials Guide for Bundling & Securing Datasheet

173-61400

Active

HELLERMANNTYTON

SLEEVING 0.551" X 328' SLVR/BLK

Deep-Dive with AI

DocumentsMaterials Guide for Bundling & Securing Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	173-61400

Abrasion Protection	Abrasion Resistant
Color	Black, Silver
Diameter - Inside, Expanded [diameter]	0.709 in
Diameter - Inside, Expanded [diameter]	18 mm
Diameter - Outside, Non-Expanded [diameter]	14 mm
Diameter - Outside, Non-Expanded [diameter]	0.551 in
Features	Chemical Resistant, EMI Resistant, Self Extinguishing
Heat Protection	Flame Retardant
Length [x]	100 m
Length [x]	328 '
Material	Polybutylene Terephthalate (PBT) and Copper Tin Plated
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-40 °C
Type	Sleeve
Type Attributes	Expandable

173-61 Series

Part	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Material Flammability Rating	Type	Type Attributes	Features	Heat Protection	Material	Abrasion Protection	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Length [x]	Length [x]
HELLERMANNTYTON 173-61400	14 mm	0.551 in	UL94 V-0	Sleeve	Expandable	Chemical Resistant EMI Resistant Self Extinguishing	Flame Retardant	Polybutylene Terephthalate (PBT) and Copper Tin Plated	Abrasion Resistant	0.709 in	18 mm	-40 °C	347 °F	Black Silver	100 m	328 '
HELLERMANNTYTON 173-61000	10 mm	0.394 in	UL94 V-0	Sleeve	Expandable	Chemical Resistant EMI Resistant Self Extinguishing	Flame Retardant	Polybutylene Terephthalate (PBT) and Copper Tin Plated	Abrasion Resistant	0.512 in	13 mm	-40 °C	347 °F	Black Silver	50 m	164 ft
HELLERMANNTYTON 173-61200	12 mm	0.472 in	UL94 V-0	Sleeve	Expandable	Chemical Resistant EMI Resistant Self Extinguishing	Flame Retardant	Polybutylene Terephthalate (PBT) and Copper Tin Plated	Abrasion Resistant	0.591 in	15 mm	-40 °C	347 °F	Black Silver	50 m	164 ft
HELLERMANNTYTON 173-61800	18 mm	0.709 in	UL94 V-0	Sleeve	Expandable	Chemical Resistant EMI Resistant Self Extinguishing	Flame Retardant	Polybutylene Terephthalate (PBT) and Copper Tin Plated	Abrasion Resistant	0.866 in	22 mm	-40 °C	347 °F	Black Silver	50 m	164 ft
HELLERMANNTYTON 173-61600	16 mm	0.63 "	UL94 V-0	Sleeve	Expandable	Chemical Resistant EMI Resistant Self Extinguishing	Flame Retardant	Polybutylene Terephthalate (PBT) and Copper Tin Plated	Abrasion Resistant	0.787 in	20 mm	-40 °C	347 °F	Black Silver	100 m	328 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	2	$ 2542.80
