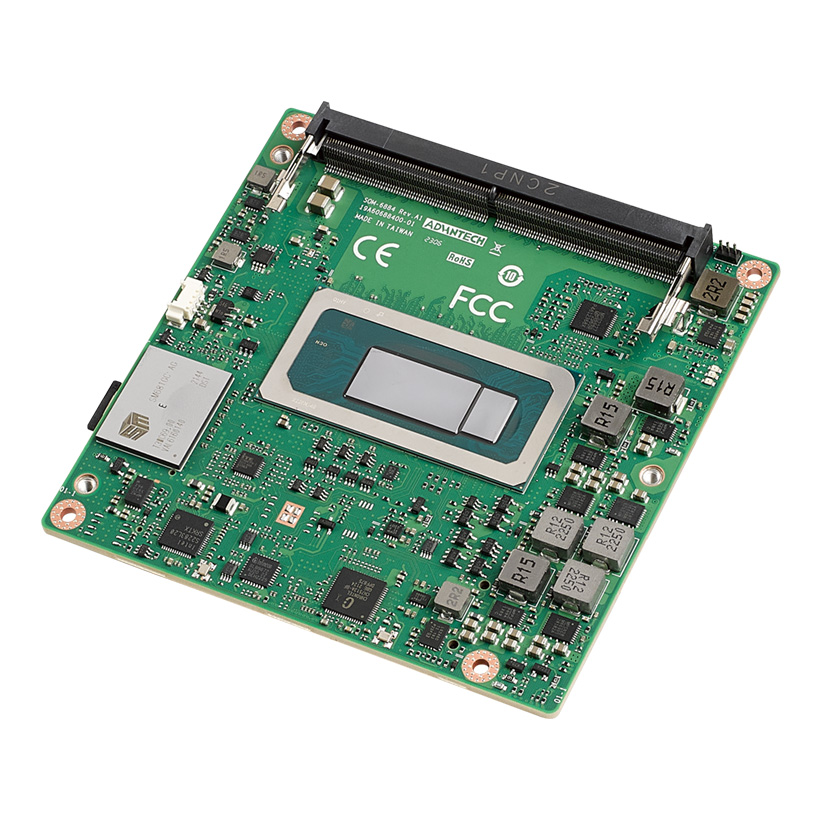

SOM-6884C7H-U5A1
ActiveAdvantech Corp
SBC 5GHZ 14 CORE 64GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
SOM-6884C7H-U5A1
ActiveAdvantech Corp
SBC 5GHZ 14 CORE 64GB/0GB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SOM-6884C7H-U5A1 |
|---|---|
| Cooling Type | Fan |
| Core Processor | Intel Core i7-13800HE |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | GPIO, SATA, CAN, PCIe, SMBus, I2C, LPC, LVDS |
| Form Factor | COM Express R3.0 Compact Module, Type 6 |
| Number of Cores | 14 Cores |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Capacity/Installed | 0 GB, 64 GB |
| Size / Dimension [x] | 3.74 " |
| Size / Dimension [x] | 94.99 mm |
| Size / Dimension [y] | 3.74 " |
| Size / Dimension [y] | 94.99 mm |
| Speed | 5 GHz |
| Storage Interface | SSD, SATA 3.0 (2) |
| USB | USB 4.0 (2), USB 2.0 (8), USB 3.2 (4) |
| Video Outputs | DDI, HDMI, Mini Display Port, LCD, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1238.75 | |
| 1 | $ 1449.00 | |||
| 1 | $ 1238.75 | |||
| 1 | $ 1449.00 | |||
Description
General part information
SOM-6884 Series
Single Board Computer 5GHz 14 Core 64GB/0GB RAM Intel Core i7-13800HE
Documents
Technical documentation and resources
No documents available
