09120009908

Active

HARTING Technology Group

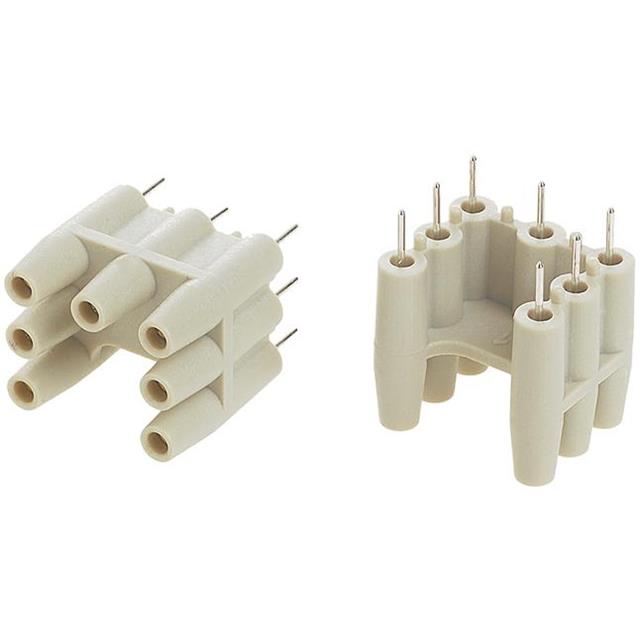

HAN Q7/0 PCB ADAPTER (FOR PCB UP TO 2.4MM)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN Q7/0 PCB ADAPTER (FOR PCB UP TO 2.4MM)

Technical Specifications

Parameters and characteristics for this part

Specification	09120009908

Accessory Type	PCB Adapter
For Use With/Related Products	Han® Q Inserts
Specifications	7 Gallon

Part	Accessory Type	For Use With/Related Products	Specifications [Min] [diameter]	Specifications [Max] [diameter]	Specifications	Specifications
HARTING Technology Group 09120009968	Blanking Plug	Han-Power® S Housings
HARTING Technology Group 09120009966	Grommet	Han-Power® S Housings	10 mm	13 mm
HARTING Technology Group 09120009973	Grommet	Han-Power® S Housings	19 mm	22 mm
HARTING Technology Group 09120009902	Coding Pin	Han® Q 3A Inserts			Female
HARTING Technology Group 09120009974	Blanking Plug	Han-Power® S Housings
HARTING Technology Group 09120009971	Grommet	Han-Power® S Housings
HARTING Technology Group 09120009905	PCB Adapter	Han® Q Inserts			5 Positions
HARTING Technology Group 09120009969	Grommet	Han-Power® S Housings	7 mm	10 mm
HARTING Technology Group 09120009912	Gasket	Han-Compact® Bases
HARTING Technology Group 09120009908	PCB Adapter	Han® Q Inserts				7 Gallon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector PCB Adapter
