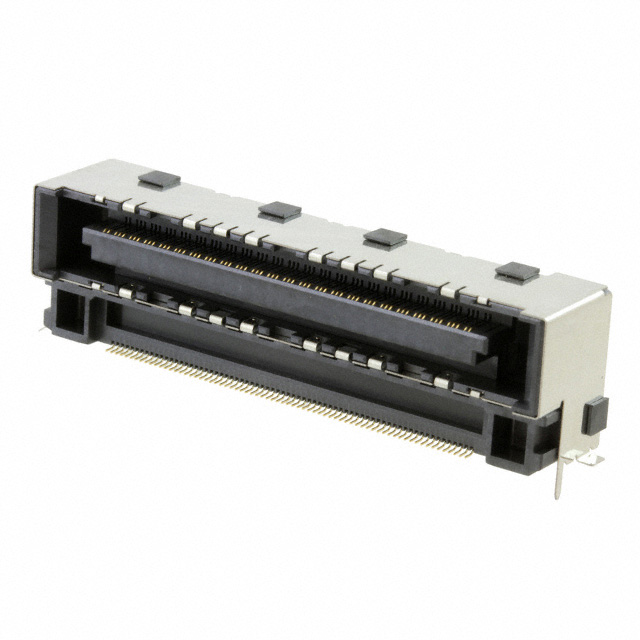

WB4S140HA1

Obsolete

JAE Electronics

CONN RCPT 140POS R/A GOLD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 140POS R/A GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WB4S140HA1

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board	0.541 in
Height Above Board	13.75 mm
Mounting Type	Through Hole, Right Angle
Number of Positions	140
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Contact Finish	Number of Rows	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	Connector Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness
JAE Electronics WB4S140HA1	Gold	2	140	Through Hole Right Angle	0.5 mm	0.02 in	Center Strip Contacts Receptacle	0.541 in	13.75 mm	4 Áin	0.1 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

140 Position Connector Receptacle, Center Strip Contacts Through Hole, Right Angle Gold
