MWA220048A-11A
ActiveInventus Power

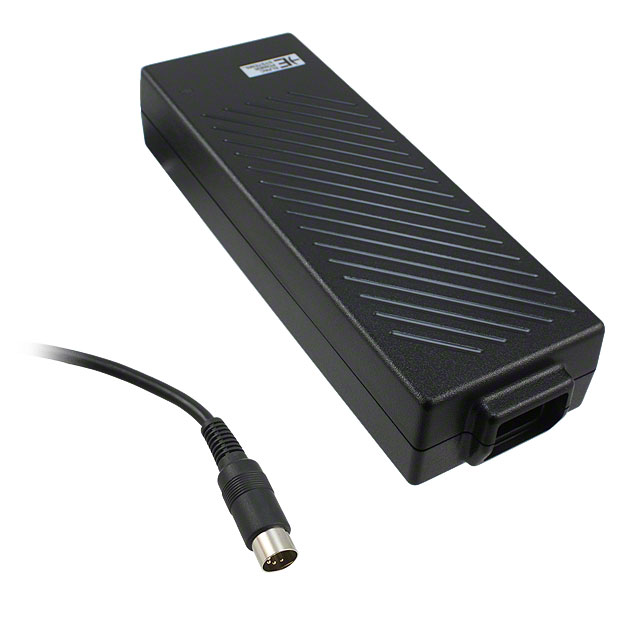

AC/DC DESKTOP ADAPTER 48V 221W
Deep-Dive with AI
Search across all available documentation for this part.
MWA220048A-11A
ActiveInventus Power
AC/DC DESKTOP ADAPTER 48V 221W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MWA220048A-11A |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cTUVus |
| Cord Length | 1.83 m |
| Cord Length | 72 in |
| Current - Output (Max) [Max] | 4.6 A |
| Efficiency | Level V |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 500 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | DIN |
| Output Connector | 5 Pin |
| Power (Watts) | 221 W |
| Region Utilized | International |
| Size / Dimension [x] | 8.2 " |
| Size / Dimension [x] | 208 mm |
| Size / Dimension [y] | 73 mm |
| Size / Dimension [y] | 2.9 in |
| Size / Dimension [z] | 1.6 " |
| Size / Dimension [z] | 39 mm |
| Voltage - Output | 48 V |
| Weight | 952.5 g |
| Weight | 2.1 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 105.45 | |
| 10 | $ 98.65 | |||
| 100 | $ 90.48 | |||
Description
General part information
MWA220048 Series
48V 221 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
