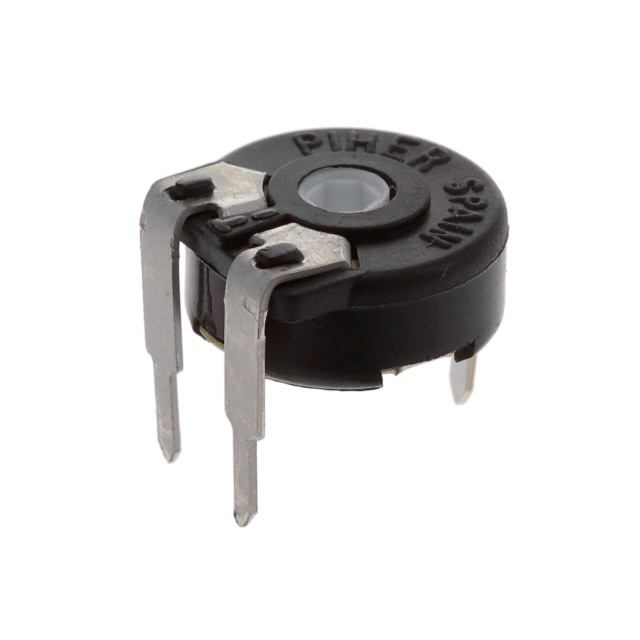

PT10MV10-151A2020-S

Active

Amphenol Piher Sensing Systems

TRIMMER 150 OHM 0.15W PC PIN TOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PT10MV10-151A2020-S

Active

Amphenol Piher Sensing Systems

TRIMMER 150 OHM 0.15W PC PIN TOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT10MV10-151A2020-S

Adjustment Type	Top Adjustment
Mounting Type	Through Hole
Number of Turns	1
Power (Watts)	150 mW
Resistance	150 Ohms
Resistive Material	Carbon
Size / Dimension	Round
Size / Dimension [diameter]	0.406 in
Size / Dimension [diameter]	10.3 mm
Temperature Coefficient	300 ppm/°C
Termination Style	PC Pins
Tolerance	20 %

PT10MV10 Series

Part	Tolerance	Temperature Coefficient	Resistance	Power (Watts)	Adjustment Type	Termination Style	Resistive Material	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension	Number of Turns
Amphenol Piher Sensing Systems PT10MV10-203A2020-S	20 %	300 ppm/°C	20 kOhms	150 mW	Top Adjustment	PC Pins	Carbon	Through Hole	0.406 in	10.3 mm	Round	1
Amphenol Piher Sensing Systems PT10MV10-501A2020-S	20 %	300 ppm/°C	500 Ohms	150 mW	Top Adjustment	PC Pins	Carbon	Through Hole	0.406 in	10.3 mm	Round	1
Amphenol Piher Sensing Systems PT10MV10-101A2020-S	20 %	300 ppm/°C	100 Ohms	150 mW	Top Adjustment	PC Pins	Carbon	Through Hole	0.406 in	10.3 mm	Round	1
Amphenol Piher Sensing Systems PT10MV10-505A3030-S	30 %	300 ppm/°C	5 MOhms	150 mW	Top Adjustment	PC Pins	Carbon	Through Hole	0.406 in	10.3 mm	Round	1
Amphenol Piher Sensing Systems PT10MV10-103A2020-PM-S	20 %	300 ppm/°C	10000 Ohms	150 mW	Top Adjustment	PC Pins	Carbon	Through Hole	0.406 in	10.3 mm	Round	1
Amphenol Piher Sensing Systems PT10MV10-222A1010-PM-S	10 %	300 ppm/°C	2200 Ohms	150 mW	Top Adjustment	PC Pins	Carbon	Through Hole	0.406 in	10.3 mm	Round	1
Amphenol Piher Sensing Systems PT10MV10-204A2020-S	20 %	300 ppm/°C	200000 Ohms	150 mW	Top Adjustment	PC Pins	Carbon	Through Hole	0.406 in	10.3 mm	Round	1
Amphenol Piher Sensing Systems PT10MV10-105A2020-S	20 %	300 ppm/°C	1 MOhms	150 mW	Top Adjustment	PC Pins	Carbon	Through Hole	0.406 in	10.3 mm	Round	1
Amphenol Piher Sensing Systems PT10MV10-102A2020-S	20 %	300 ppm/°C	1000 Ohms	150 mW	Top Adjustment	PC Pins	Carbon	Through Hole	0.406 in	10.3 mm	Round	1
Amphenol Piher Sensing Systems PT10MV10-151A2020-S	20 %	300 ppm/°C	150 Ohms	150 mW	Top Adjustment	PC Pins	Carbon	Through Hole	0.406 in	10.3 mm	Round	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.84
		10	$ 0.68
		25	$ 0.62

Description

General part information

PT10MV10 Series

150 Ohms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
