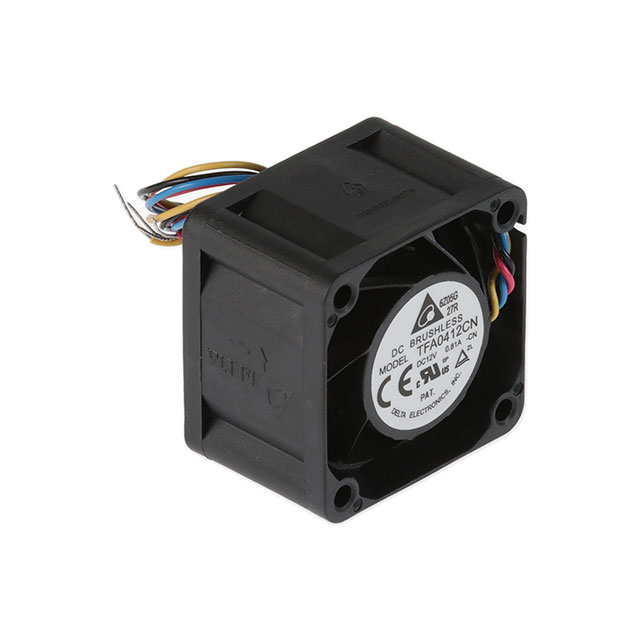

TFA0412CN-CN

Active

Delta Electronics

FAN AXIAL 40X28MM 12VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 40X28MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	TFA0412CN-CN

Air Flow	0.708 m³/min
Air Flow	25.3 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	600 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	IP51 - Dust Protected
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	55 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	7.2 W
RPM	17600 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	465.3 Pa
Static Pressure	1.868 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	0.098 lb
Weight	44.45 g
Width [y]	28 mm

Part	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Width [y]	Bearing Type	Termination	Features	Fan Type	Material - Frame	Noise	Air Flow	Air Flow	Weight	Weight	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	Voltage - Rated	RPM	Current Rating (Amps)	Static Pressure	Static Pressure	Power (Watts)	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Ingress Protection	Lifetime @ Temp.
Delta Electronics TFA0412BN-CN	70 °C	70 °C	-10 °C	-10 °C	Plastic	28 mm	Ball	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Tubeaxial	Plastic	50.8 dB(A)	22.2 CFM	0.622 m³/min	47.17 g	0.104 lb	8 VDC	13.2 VDC	CE cURus TUV	12 VDC	15600 RPM	0.42 A	1.617 in H2O	402.8 Pa	5.04 W	40 mm	Square	40 mm
Delta Electronics TFA0412CN-CN	70 °C	70 °C	-10 °C	-10 °C	Plastic	28 mm	Ball	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Tubeaxial	Plastic	55 dB	25.3 CFM	0.708 m³/min	44.45 g	0.098 lb	7 V	13.2 VDC	CE cURus TUV	12 VDC	17600 RPM	600 mA	1.868 in H2O	465.3 Pa	7.2 W	40 mm	Square	40 mm	IP51 - Dust Protected	70000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 25.3 CFM (0.708m³/min) 4 Wire Leads
