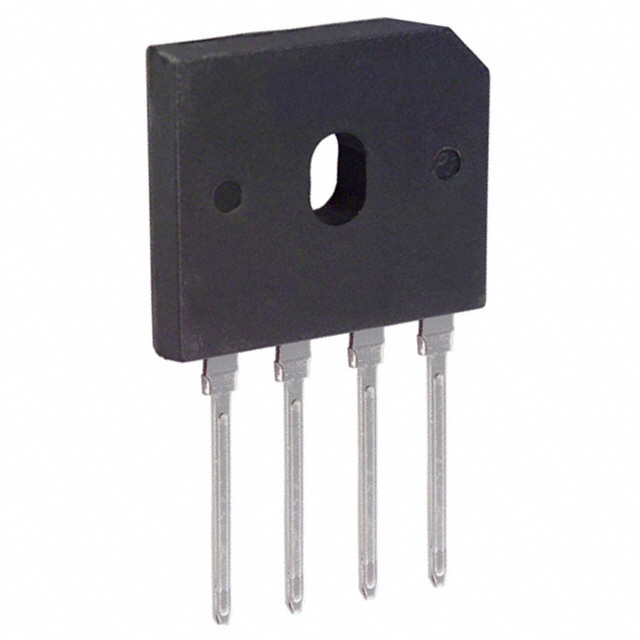

GBU6MP_T0_00101

NRND

Panjit International Inc.

GBU-1, GENERAL

Search across all available documentation for this part.

NRND

Panjit International Inc.

GBU-1, GENERAL

Technical Specifications

Parameters and characteristics for this part

Specification	GBU6MP_T0_00101

Current - Average Rectified (Io)	6 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SIP, GBU
Supplier Device Package	GBU-1
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.05 V
Voltage - Peak Reverse (Max) [Max]	1000 V

Part	Current - Reverse Leakage @ Vr	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Technology	Current - Average Rectified (Io)	Diode Type	Supplier Device Package	Package / Case	Voltage - Peak Reverse (Max) [Max]
Panjit International Inc. GBU6MP_T0_00101	5 µA	-55 °C	150 °C	Through Hole	1.05 V	Standard	6 A	Single Phase	GBU-1	4-SIP GBU	1000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1 kV Through Hole GBU-1
