SC-10-500

Active

KEMET

COMMON MODE FILTER, 5MH, 10A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

COMMON MODE FILTER, 5MH, 10A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Number of Lines	Inductance @ Frequency	Filter Type	DC Resistance (DCR) (Max) [Max]	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Height (Max) [Max]	Height (Max)	Current Rating (Max) [Max]	Voltage Rating - DC	Height (Max) [Max]	Height (Max)	DC Resistance (DCR) (Max)	Height (Max) [Max] [z]	Height (Max) [Max] [z]
KEMET SC-10-1000	2	10 mH	Power Line	35 mOhm	250 V	-40 °C	105 ░C	Through Hole	Horizontal No Base	4 Lead	2.244 in	57 mm	1.181 in	30 mm	10 A	250 V
KEMET SC-10-200	2	2 mH	Power Line	28 mOhm	250 V	-40 °C	105 ░C	Through Hole	Horizontal No Base	4 Lead	1.85 "	47 mm	1.063 in	27 mm	10 A	250 V
KEMET SC-10-55JH	2	5.5 mH	Power Line		250 V	-40 °C	105 ░C	Through Hole	Horizontal	4 Lead	2.008 "	51 mm	1.339 in		10 A	250 V	34 mm
KEMET SC-10-E200H	2	2 mH	Power Line		250 V	-40 °C	120 °C	Through Hole	Horizontal No Base	4 Lead	1.339 "	34 mm		24 mm	10 A	250 V		0.945 in	20 mOhm
KEMET SC-10-500	2	5 mH	Power Line		250 V	-40 °C	105 ░C	Through Hole	Horizontal No Base	4 Lead	1.929 in	49 mm	1.063 in	27 mm	10 A	250 V			25 mOhm
KEMET SC-10-340	2	3.4 mH	Power Line	32 mOhm	250 V	-40 °C	105 ░C	Through Hole	4 PC Pin No Base Vertical		1.89 "	48 mm	1.89 in		10 A	250 V	48 mm
KEMET SC-10-E80JH	2		Power Line		250 V	-40 °C	120 °C	Through Hole	Horizontal	4 Lead	2.087 in	53 mm			10 A	250 V				35 mm	1.378 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

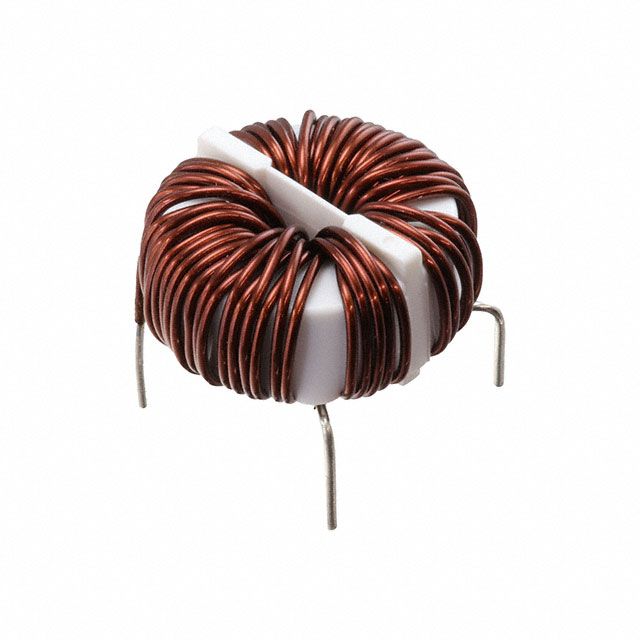

5 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 10A DCR 25mOhm
