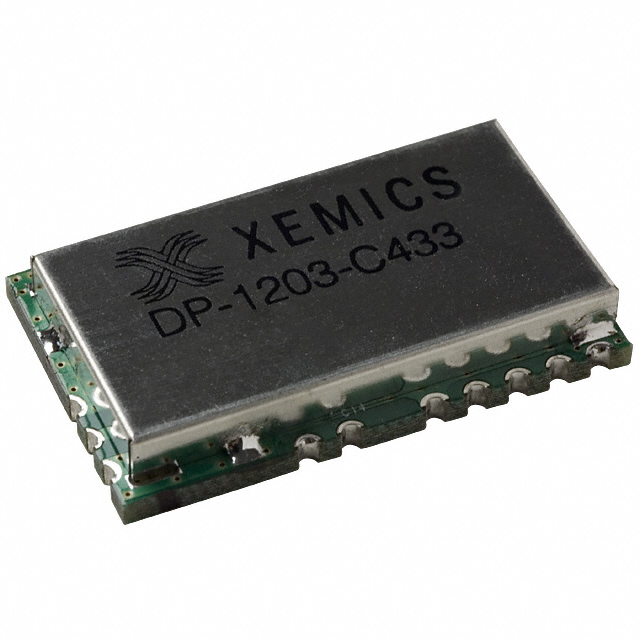

DP1203C4333

Obsolete

Semtech Corporation

RF TXRX MODULE ISM < 1GHZ SMD

Search across all available documentation for this part.

Obsolete

Semtech Corporation

RF TXRX MODULE ISM < 1GHZ SMD

Technical Specifications

Parameters and characteristics for this part

Part	Antenna Type	Utilized IC / Part	Current - Transmitting [Max]	Current - Transmitting [Min]	Current - Receiving	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	Serial Interfaces	RF Family/Standard	Mounting Type	Frequency	Sensitivity
Semtech Corporation DP1203C868	Antenna Not Included	XE1203	62 mA	33 mA	14 mA	Module	2.4 V	3.6 V	11 dBm	85 °C	-40 °C	152.3 kbps	SPI	General ISM < 1GHz	Surface Mount	868 MHz	-111 dBm
Semtech Corporation DP1203C9153LF	Antenna Not Included	XE1203	62 mA	33 mA	14 mA	Module	2.4 V	3.6 V	11 dBm	85 °C	-40 °C	152.3 kbps	SPI	General ISM < 1GHz	Surface Mount	915 MHz	-111 dBm
Semtech Corporation DP1203C915	Antenna Not Included	XE1203	62 mA	33 mA	14 mA	Module	2.4 V	3.6 V	11 dBm	85 °C	-40 °C	152.3 kbps	SPI	General ISM < 1GHz	Surface Mount	915 MHz	-111 dBm
Semtech Corporation DP1203C4333	Antenna Not Included	XE1203	62 mA	33 mA	14 mA	Module	2.4 V	3.6 V	11 dBm	85 °C	-40 °C	152.3 kbps	SPI	General ISM < 1GHz	Surface Mount	433 MHz	-111 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General ISM < 1GHz Transceiver Module 433MHz Antenna Not Included Surface Mount
