MP2040DU-LF-P

MONOLITHIC POWER SYSTEMS (MPS)

IC REG LINEAR POS ADJ 3A 32QFN

Search across all available documentation for this part.

MONOLITHIC POWER SYSTEMS (MPS)

IC REG LINEAR POS ADJ 3A 32QFN

Technical Specifications

Parameters and characteristics for this part

Specification	MP2040DU-LF-P

Control Features	Enable, Power Good
Current - Output	3 A
Current - Quiescent (Iq)	3.5 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable

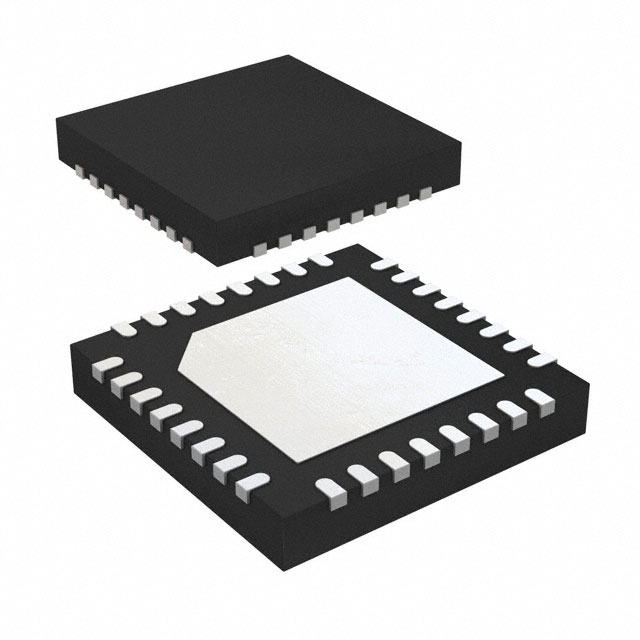

Package / Case	32-VFQFN Exposed Pad
Protection Features	Soft Start, Over Temperature, Over Current
PSRR	40 dB
Supplier Device Package	32-QFN (5x5)
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Max) [Max]	3.3 V
Voltage - Output (Min/Fixed)	0.9 V
Voltage Dropout (Max) [Max]	0.15 V

Part	Output Type	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)	Output Configuration	PSRR	Control Features	Current - Quiescent (Iq)	Protection Features	Voltage - Input (Max) [Max]	Current - Output	Voltage Dropout (Max) [Max]	Number of Regulators	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package
MONOLITHIC POWER SYSTEMS (MPS) MP2040DU-LF-Z	Adjustable	3.3 V	0.9 V	Positive	40 dB	Enable Power Good	3.5 mA	Over Current Over Temperature Soft Start	5.5 V	3 A	0.15 V	1	Surface Mount	32-VFQFN Exposed Pad	125 °C	-40 °C	32-QFN (5x5)
MONOLITHIC POWER SYSTEMS (MPS) MP2040DU-LF-P	Adjustable	3.3 V	0.9 V	Positive	40 dB	Enable Power Good	3.5 mA	Over Current Over Temperature Soft Start	5.5 V	3 A	0.15 V	1	Surface Mount	32-VFQFN Exposed Pad	125 °C	-40 °C	32-QFN (5x5)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Adjustable 1 Output 3A 32-QFN (5x5)
