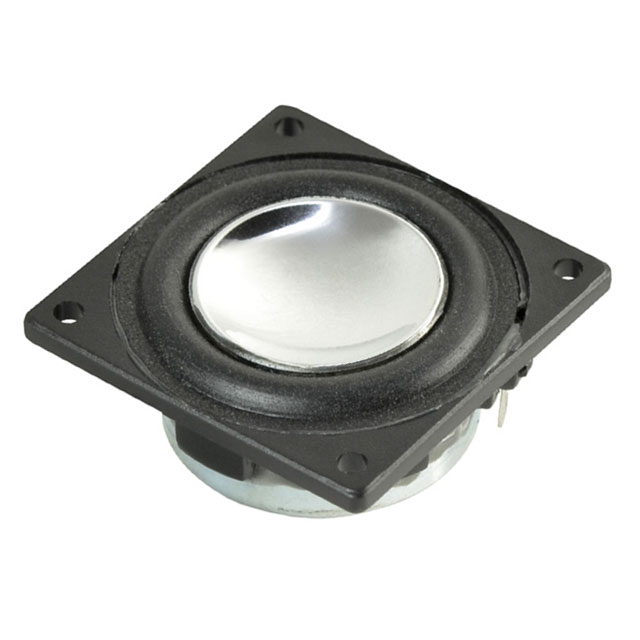

CMS-34348N

Active

CUI Devices

SPEAKER 8OHM 3W TOP PORT 80DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 3W TOP PORT 80DB

Technical Specifications

Parameters and characteristics for this part

Specification	CMS-34348N

Efficiency - dBA	80 dBA
Efficiency - Testing	1 mW/100mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	380 Hz
Frequency Range [Max]	10 kHz
Frequency Range [Min]	304 Hz
Height - Seated (Max) [Max] [z]	0.571 in
Height - Seated (Max) [Max] [z]	14.5 mm
Impedance	8 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	4 W
Power - Rated	3 W
Shape	Square Frame, Round
Size / Dimension [x]	1.339 "
Size / Dimension [x]	34 mm
Size / Dimension [y]	1.339 in
Size / Dimension [y]	34 mm
Technology	Magnetic
Termination	Solder Eyelet(s)
Type	General Purpose

Part	Technology	Power - Rated	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Frequency Range [Min]	Frequency Range [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Efficiency - dBA	Impedance	Material - Cone	Shape	Port Location	Efficiency - Testing	Material - Magnet	Type	Termination	Power - Max [Max]	Efficiency - Type	Frequency - Self Resonant
CUI Devices CMS-34348N	Magnetic	3 W	1.339 in	1.339 "	34 mm	34 mm	304 Hz	10 kHz	0.571 in	14.5 mm	80 dBA	8 Ohms	Polyester Polyethylene Terephthalate (PET)	Round Square Frame	Top	1 mW/100mm	Nd-Fe-B	General Purpose	Solder Eyelet(s)	4 W	Sound Pressure Level (SPL)	380 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 4.92

General part information

8 Ohms General Purpose Speaker 3 W 304 Hz ~ 10 kHz Top Round, Square Frame
