09120080728

Active

HARTING Technology Group

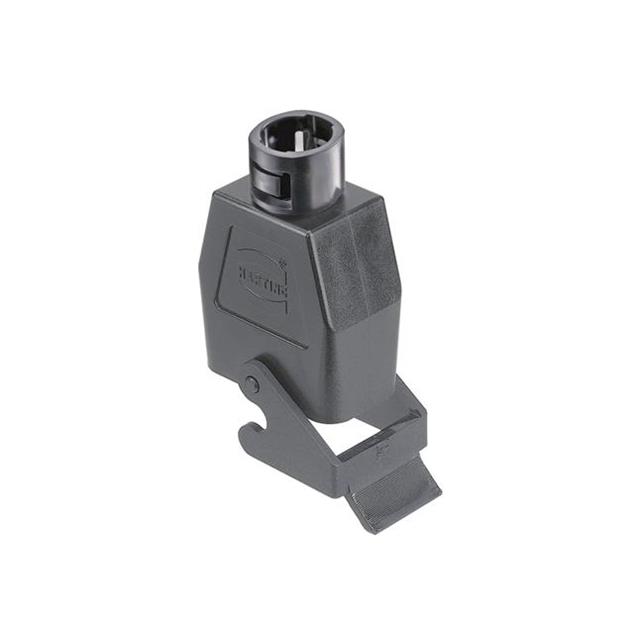

HAN Q 8/0 COUPLER ADAPTALOCK ROHS COMPLIANT: NA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09120080728

Active

HARTING Technology Group

HAN Q 8/0 COUPLER ADAPTALOCK ROHS COMPLIANT: NA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09120080728

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Black
Housing Material	Thermoplastic
Ingress Protection	IP67, IP65
Lock Location	Locking Clip (1) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	45.9 mm
Size / Dimension [x]	1.807 "
Size / Dimension [y]	1.051 in
Size / Dimension [y]	26.7 mm
Size / Dimension [z]	1.988 in
Size / Dimension [z]	50.5 mm
Style	Bottom Entry

09120080 Series

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Lock Location	Housing Color	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Thread Size	Connector Type	Style	Features	Housing Finish
HARTING Technology Group 09120080429	2.126 in	47.9 mm	28.7 mm	1.886 "	54 mm	1.13 in	Locking Clip (1) on Base Bottom	Black	Polycarbonate (PC)	125 °C	-40 °C	IP65 IP67	PG21	Hood	Top Entry
HARTING Technology Group 09120080327	0.768 in	45.9 mm	28.7 mm	1.807 "	19.5 mm	1.13 in	Locking Clip (1) on Base Bottom	Black	Polycarbonate (PC)	125 °C	-40 °C	IP65 IP67		Base - Panel Mount	Bottom Entry
HARTING Technology Group 09120080328
HARTING Technology Group 09120080428	2.126 in	47.9 mm	28.7 mm	1.886 "	54 mm	1.13 in	Locking Clip (1) on Base Bottom	Black	Thermoplastic	125 °C	-40 °C	IP65 IP67		Hood	Top Entry
HARTING Technology Group 09120080728	1.988 in	45.9 mm	26.7 mm	1.807 "	50.5 mm	1.051 in	Locking Clip (1) on Hood	Black	Thermoplastic	125 °C	-40 °C	IP65 IP67		Hood - Coupling	Bottom Entry	Cable to Cable
HARTING Technology Group 09120080427	2.126 in	47.9 mm	28.7 mm	1.886 "	54 mm	1.13 in	Locking Clip (1) on Base Bottom	Black	Thermoplastic	125 °C	-40 °C	IP65 IP67	PG16	Hood	Top Entry
HARTING Technology Group 09120080902	1.299 in	45.9 mm	30 mm	1.807 "	33 mm	1.181 in	Locking Clip (1) on Base Bottom	Black	Thermoplastic	125 °C	-40 °C	IP65 IP67		Base - Panel Mount 90°	Side Entry
HARTING Technology Group 09120080527	2.126 in	47.9 mm	28.7 mm	1.886 "	54 mm	1.13 in	Locking Clip (1) on Base Bottom	Black	Polycarbonate (PC)	125 °C	-40 °C	IP65 IP67	PG16	Hood	Side Entry
HARTING Technology Group 09120080303	0.728 "	45.9 mm	29 mm	1.807 "	18.5 mm	1.142 in	Locking Clip (1) on Base Bottom		Zinc Die Cast	125 °C	-40 °C	IP65 - Dust Tight Water Resistant		Base - Panel Mount	Bottom Entry		Nickel
HARTING Technology Group 09120080329

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 21.12
Newark	Each	10	$ 20.69
		25	$ 18.65
		50	$ 18.14
		100	$ 16.00
		250	$ 14.88
		500	$ 14.58

Description

General part information

09120080 Series

Hood - Coupling Connector Bottom Entry IP65/IP67 - Dust Tight, Water Resistant, Waterproof
