84BB1-004

Active

Grayhill Inc.

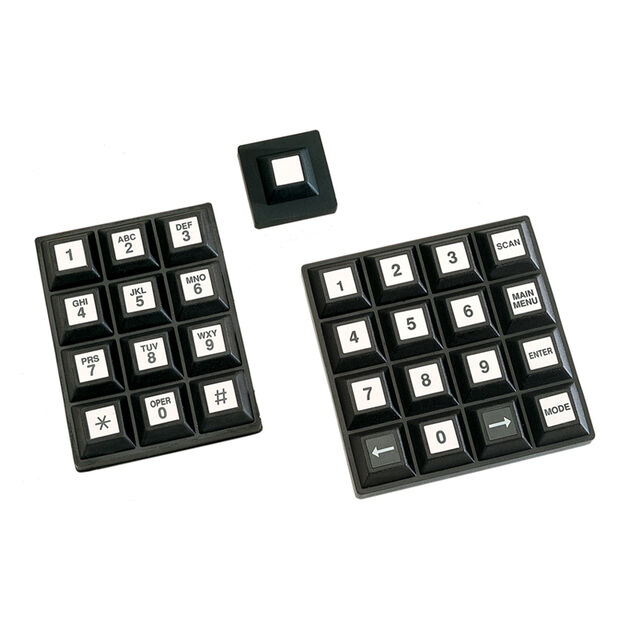

PAD SWITCH,SPST,NUMBER OF POSITIONS:16,PC TAIL TERMINAL

Search across all available documentation for this part.

Active

Grayhill Inc.

PAD SWITCH,SPST,NUMBER OF POSITIONS:16,PC TAIL TERMINAL

Technical Specifications

Parameters and characteristics for this part

Part	Illumination	Legend	Switch Type	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Key Type	Legend Type	Contact Rating @ Voltage	Number of Keys	Output Type	Legend Color	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Operational Life
Grayhill Inc. 84BB1-001	Non-Illuminated	Customizable (Sold Separate)	Snap Dome	4	4	Transparent Key Cap	Interchangeable	0.01 A 24 VDC	16	Common Bus	White	Pin Header	85 °C	-40 °C	Panel Mount Front	3000000 Cycles
Grayhill Inc. 84BB1-004	Non-Illuminated	Customizable (Sold Separate)	Snap Dome	4	4	Transparent Key Cap	Interchangeable	0.01 A 24 VDC	16	Common Bus	White	Pin Header	85 °C	-40 °C	Panel Mount Front	3000000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 62.26
Newark	Each	1	$ 91.81
		500	$ 76.51

General part information

Keypad Switch 16 Transparent Key Cap Keys Snap Dome Contacts Common Bus Output Non-Illuminated 0.01A @ 24VDC

Technical documentation and resources

No documents available
