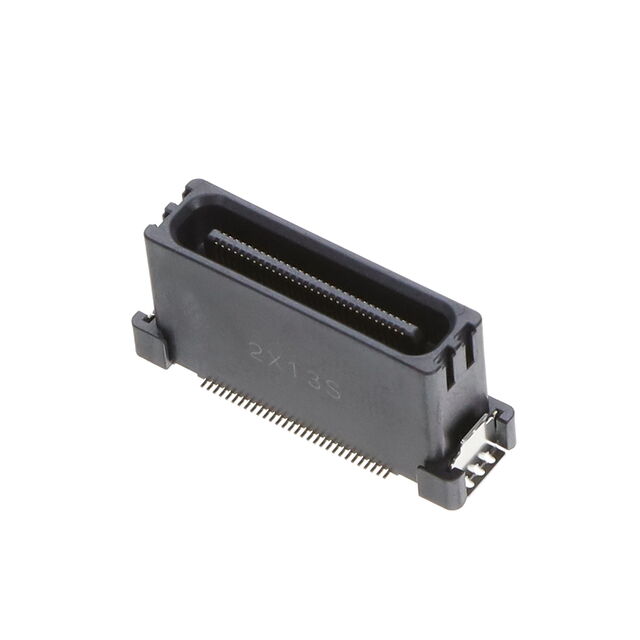

145652060201829+T

Active

Kyocera AVX

BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Search across all available documentation for this part.

Active

Kyocera AVX

BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	145652060201829+T

Connector Type	Plug, Floating
Features	Solder Retention, Board Guide
Height Above Board [z]	11.94 mm
Height Above Board [z]	0.47 in
Mated Stacking Heights	20 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Connector Type	Number of Positions	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Mounting Type	Number of Rows	Features	Pitch [x]	Pitch [x]
Kyocera AVX 145652060201829+T	Floating Plug	60	20 mm	11.94 mm	0.47 in	Surface Mount	2	Board Guide Solder Retention	0.5 mm	0.02 in
Kyocera AVX 145652100205829+T	Floating Plug	100	20 mm	11.94 mm	0.47 in	Surface Mount	2	Board Guide Solder Retention	0.5 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Connector Plug, Floating Surface Mount
