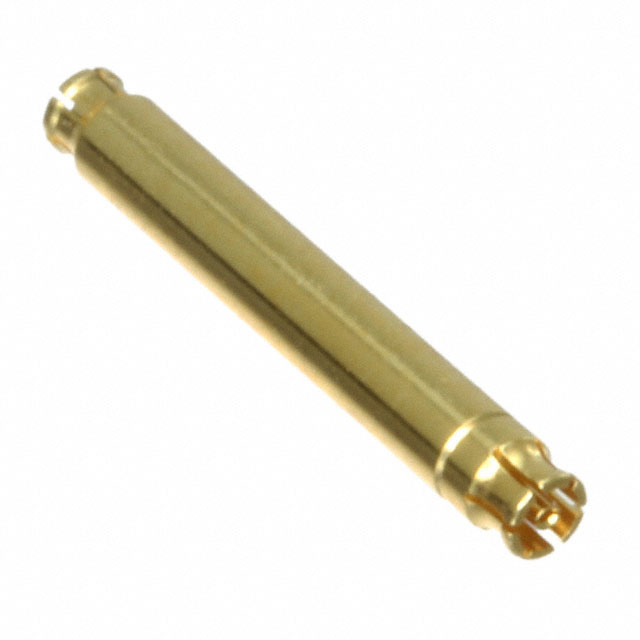

W1K10N-K00D3

Active

Rosenberger

ADAPT WSMP JACK - WSMP JACK

Search across all available documentation for this part.

Active

Rosenberger

ADAPT WSMP JACK - WSMP JACK

Technical Specifications

Parameters and characteristics for this part

Specification	W1K10N-K00D3

Adapter Series	WSMP to WSMP
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	WSMP Jack, Female Socket
Convert To (Adapter End)	WSMP Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Fastening Type	Convert From (Adapter End)	Adapter Series	Center Contact Plating	Body Finish	Adapter Type	Convert To (Adapter End)	Body Material	Conversion Type	Impedance	Center Gender	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Style	Mounting Type	Dielectric Material	Frequency - Max [Max]
Rosenberger W1K10N-K00D3	Snap-On	WSMP Jack Female Socket	WSMP to WSMP	Gold	Gold	Jack to Jack	Female Socket WSMP Jack	Beryllium Copper	Same Series	50 Ohms	Female to Female	Beryllium Copper	165 °C	-55 °C	Straight	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	40 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector WSMP Jack, Female Socket To WSMP Jack, Female Socket 50 Ohms
