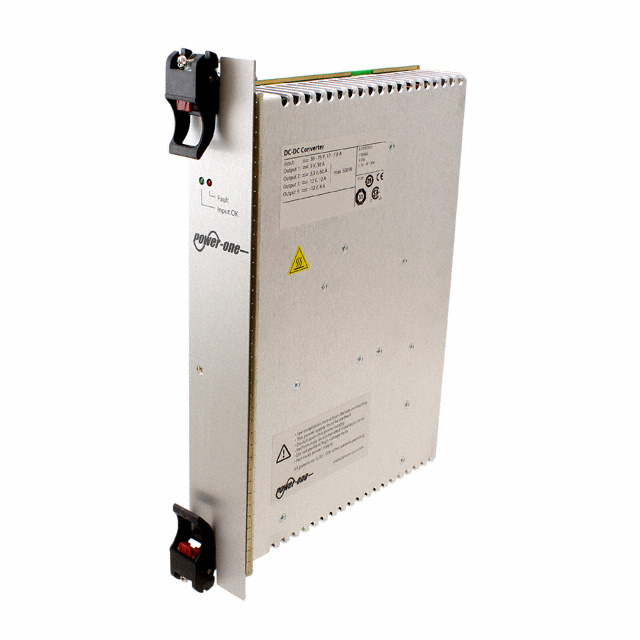

CPD500-4530G
ObsoleteEOS Power India Private Ltd
DC/DC CNVRTR 5V 3.3V +/-12V 500W
Deep-Dive with AI
Search across all available documentation for this part.
CPD500-4530G
ObsoleteEOS Power India Private Ltd
DC/DC CNVRTR 5V 3.3V +/-12V 500W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CPD500-4530G |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CSA, EN, UL, CE, IEC |
| Current - Output (Max) | 50 A, 12 A, 60 A, 4 A |
| Efficiency | 84.5 % |
| Mounting Type | Compact PCI® |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 500 W |
| Size / Dimension [x] | 6.67 in, 169.5 mm |
| Size / Dimension [y] | 1.59 in, 40.3 mm |
| Size / Dimension [z] | 10.31 in, 261.9 mm |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 3.3 V |
| Voltage - Output 3 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CPD500 Series
Enclosed DC DC Converter 4 Output 5V 3.3V 12V -12V 50A, 60A, 12A, 4A 75V Input
