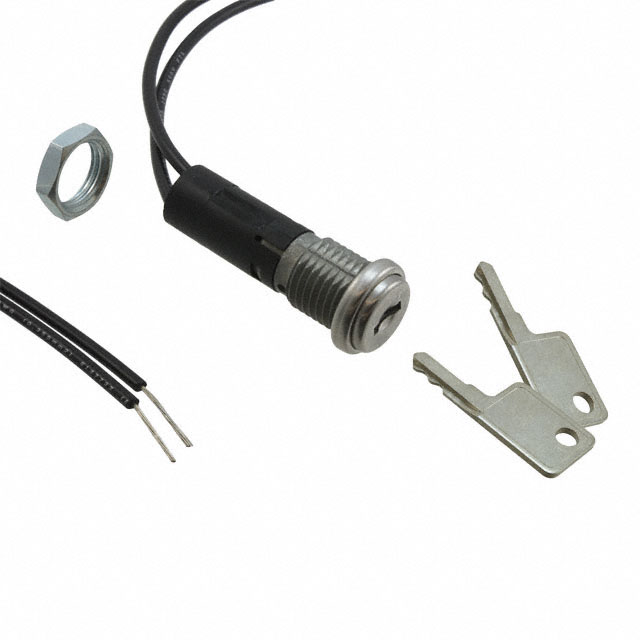

YM06132CFWCNQ

Active

Littelfuse/Commercial Vehicle Products

SWITCH KEYLOCK 2POS SPST 4A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet switchlock +1

YM06132CFWCNQ

Active

Littelfuse/Commercial Vehicle Products

SWITCH KEYLOCK 2POS SPST 4A 125V

Deep-Dive with AI

DocumentsDatasheet switchlock +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YM06132CFWCNQ

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	SPST
Contact Finish	Silver
Contact Material	Copper
Contact Timing	Not Specified
Current Rating (Amps)	4 A
Depth Behind Flange	27.07 mm
Electrical Life	10000 Cycles
Key Removable Positions	1 only
Number of Positions	2
Panel Cutout Dimensions [diameter]	11.99 mm
Switch Function	Off-On
Termination Style	Wire Leads
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Ym0 Series Series

4 Tumbler Miniature Switchlock

Part	Panel Cutout Dimensions [diameter]	Contact Material	Current Rating (Amps)	Number of Positions	Contact Timing	Electrical Life	Circuit	Key Removable Positions	Voltage Rating - DC	Depth Behind Flange	Contact Finish	Termination Style	Voltage Rating - AC	Switch Function	Angle of Throw	Actuator Type
Littelfuse/Commercial Vehicle Products YM06132C2WCNB	11.99 mm	Copper	0.4 VA	2	Not Specified	10000 Cycles	SPST	1 only	20 V	27.07 mm	Gold	Wire Leads	20 V	Off-On	90 °	Flat Key
Littelfuse/Commercial Vehicle Products YM061U2C805NQ	11.99 mm	Copper	4 A	2	Not Specified	10000 Cycles	SPST	All	28 V	33.93 mm	Silver	Solder Lug	125 V	Off-On	90 °	Flat Key
Littelfuse/Commercial Vehicle Products YM061U2C8WCNQ	11.99 mm	Copper	4 A	2	Not Specified	10000 Cycles	SPST	All	28 V	27.07 mm	Silver	Wire Leads	125 V	Off-On	90 °	Flat Key
Littelfuse/Commercial Vehicle Products YM061U2C205NQ	11.99 mm	Copper	4 A	2	Not Specified	10000 Cycles	SPST	All	28 V	33.93 mm	Silver	Quick Connect - 0.110" (2.8mm)	125 V	Off-On	90 °	Flat Key
Littelfuse/Commercial Vehicle Products YM061U2CFWCNQ	11.99 mm	Copper	4 A	2	Not Specified	10000 Cycles	SPST	All	28 V	27.07 mm	Silver	Wire Leads	125 V	Off-On	90 °	Flat Key
Littelfuse/Commercial Vehicle Products YM06132CFWCNQ	11.99 mm	Copper	4 A	2	Not Specified	10000 Cycles	SPST	1 only	28 V	27.07 mm	Silver	Wire Leads	125 V	Off-On	90 °	Flat Key
Littelfuse/Commercial Vehicle Products YM06132C805NQ	11.99 mm	Copper	4 A	2	Not Specified	10000 Cycles	SPST	1 only	28 V	33.93 mm	Silver	Quick Connect - 0.110" (2.8mm)	125 V	Off-On	90 °	Flat Key
Littelfuse/Commercial Vehicle Products YM06132CFWCNB	11.99 mm	Copper	0.4 VA	2	Not Specified	10000 Cycles	SPST	1 only	20 V	27.07 mm	Gold	Wire Leads	20 V	Off-On	90 °	Flat Key
Littelfuse/Commercial Vehicle Products YM061U2C2WCNB	11.99 mm	Copper	0.4 VA	2	Not Specified	10000 Cycles	SPST	All	20 V	27.07 mm	Gold	Wire Leads	20 V	Off-On	90 °	Flat Key

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

Ym0 Series Series

Designers of cable TV connectors, automotive accessories and computers turn to C&K’s YM series of 4 tumbler miniature switchlocks to meet their security needs. As a 4 tumbler lock with positive detent, the YM series feature snap-together assemblies for pre-wiring the switch and are available with wire lead terminations.
