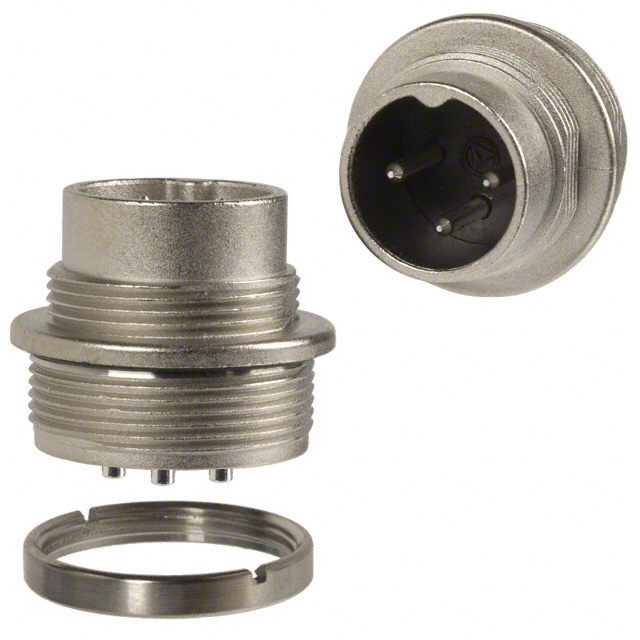

C09131W0031002U
ActiveAmphenol Tuchel Industrial
CONN RCPT MALE 3POS SILVER SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C09131W0031002U
ActiveAmphenol Tuchel Industrial
CONN RCPT MALE 3POS SILVER SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C09131W0031002U |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 10 A |
| Ingress Protection | IP69K, IP65, IP67 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Die Cast |
| Shell Size - Insert | M16-3 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.58 | |
| 10 | $ 11.15 | |||
| 25 | $ 10.72 | |||
| 50 | $ 10.29 | |||
| 100 | $ 9.72 | |||
| 300 | $ 8.86 | |||
| 500 | $ 8.29 | |||
| 1000 | $ 7.60 | |||
Description
General part information
C09131W Series
3 Position Circular Connector Receptacle, Male Pins Solder
