Technical Specifications
Parameters and characteristics for this part
| Specification | 0293820.MXJ |
|---|---|
| Color | Light Blue |
| Current Rating (Amps) | 20 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Package / Case | Auto Link |
| Response Time | Slow Blow |
| Size / Dimension [x] | 0.67 in |
| Size / Dimension [x] | 17 mm |
| Size / Dimension [y] | 0.52 in |
| Size / Dimension [y] | 13.2 mm |
| Size / Dimension [z] | 1.059 in |
| Size / Dimension [z] | 26.9 mm |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0293820.MXJ Series

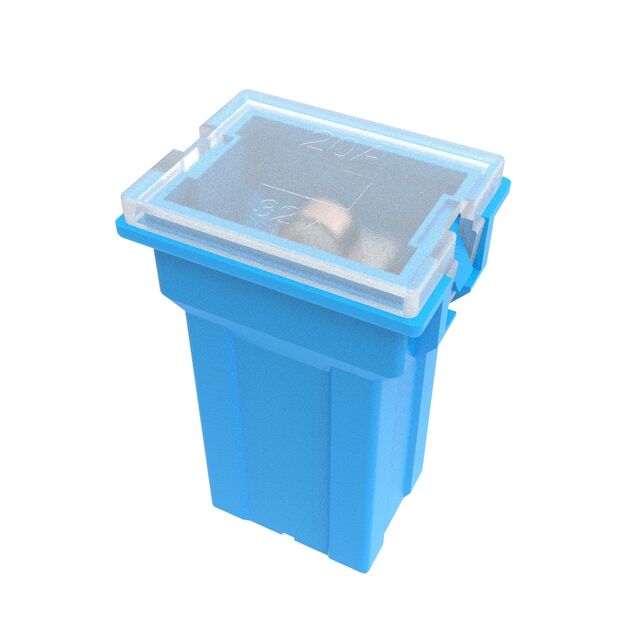

This 20 A 2938 Series Auto Link PAL fuse typically protects alternators and starters in Japanese automobiles. The cartridge fuse is rated at 32 V dc.
