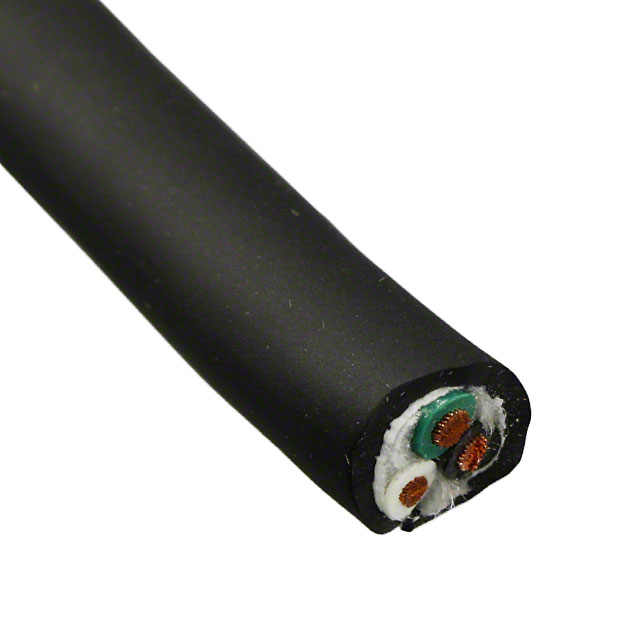

1952/3T BK003

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, SHIELDED, 3 CONDUCTOR, 18 AWG, 250 FT, 76.2 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, SHIELDED, 3 CONDUCTOR, 18 AWG, 250 FT, 76.2 M

Technical Specifications

Parameters and characteristics for this part

Specification	1952/3T BK003

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	34 AWG
Jacket (Insulation) Diameter [diameter]	7.85 mm
Jacket (Insulation) Diameter [diameter]	0.309 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	3000 "
Length	76.2 m, 15.24 m
Length [x]	50 ft
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Voltage	300 V
Wire Gauge	18 AWG

Part	Conductor Insulation	Jacket (Insulation) Material	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Voltage	Number of Conductors	Wire Gauge	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]
ALPHA WIRE 1952/3T SL003	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Slate	41 strands	34 AWG	Copper Bare	-30 ░C	105 ░C	Multi-Conductor	300 V	3	18 AWG	3000 "	76.2 m	7.85 mm	0.309 in
ALPHA WIRE 1952/3T BK003	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Black	41 strands	34 AWG	Copper Bare	-30 ░C	105 ░C	Multi-Conductor	300 V	3	18 AWG	3000 "	15.24 m 76.2 m	7.85 mm	0.309 in	50 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Black 18 AWG 50.00' (15.24m)
