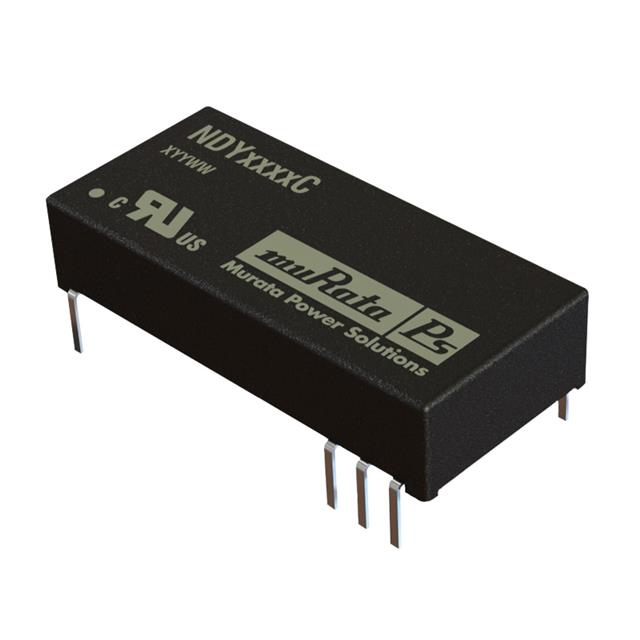

NDY1215C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 15V 3W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 15V 3W

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Number of Outputs	Current - Output (Max) [Max]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Voltage - Isolation	Power (Watts)	Applications	Voltage - Input (Max) [Max]	Efficiency	Voltage - Input (Min) [Min]
Murata Power Solutions Inc. NDY1205C	85 °C	-40 °C	Isolated Module	Through Hole	1	600 mA	5 V	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	24-DIP Module 8 Leads	1000 V	3 W	ITE (Commercial)	18 V	71 %	9 V
Murata Power Solutions Inc. NDY1215C	85 °C	-40 °C	Isolated Module	Through Hole	1	200 mA	15 V	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	24-DIP Module 8 Leads	1000 V	3 W	ITE (Commercial)	18 V	79 %	9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 15V 200mA 9V - 18V Input
