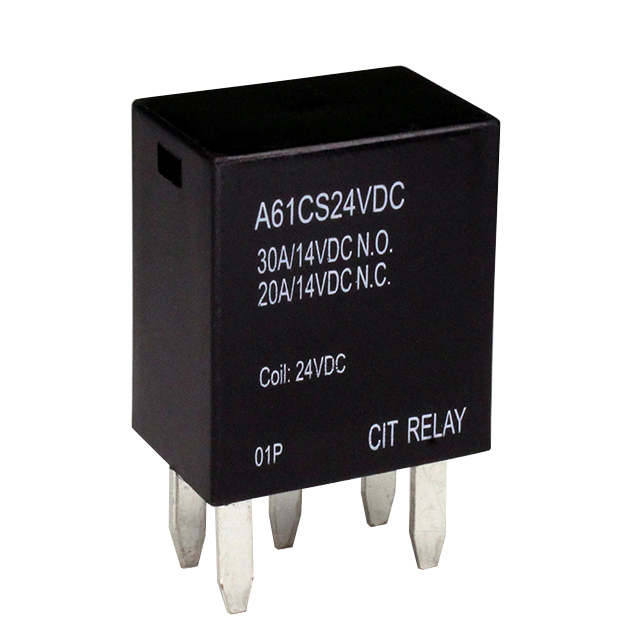

A61CS24VDC.9R
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPDT 30A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A61CS24VDC.9R
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPDT 30A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A61CS24VDC.9R |
|---|---|
| Coil Current | 37.5 mA |
| Coil Power | 900 mW |
| Coil Resistance | 640 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 30 A |
| Features | Resistor, Sealed - Fully |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 5 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 2 ms |
| Switching Voltage | 75 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.57 | |
| 10 | $ 2.24 | |||
| 25 | $ 2.13 | |||
| 40 | $ 2.07 | |||
| 80 | $ 1.99 | |||
| 230 | $ 1.87 | |||
| 440 | $ 1.80 | |||
| 945 | $ 1.72 | |||
| 4900 | $ 1.56 | |||
Description
General part information
A61CS Series
RELAY AUTOMOTIVE SPDT 30A 24V
