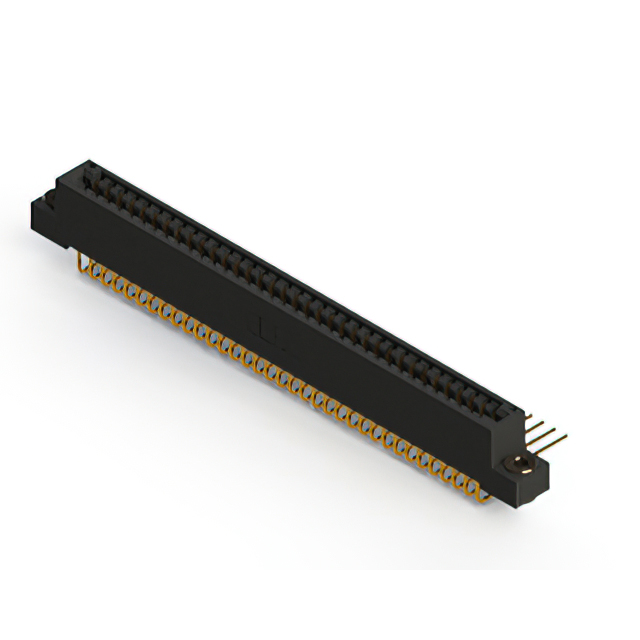

896-070-559-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 70POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-070-559-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 70POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-070-559-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 70 |
| Number of Positions/Bay/Row [custom] | 35 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
896-070 Series
...
| Part | Contact Finish | Color | Mounting Type | Gender | Number of Rows | Contact Material | Pitch [x] | Pitch [x] | Termination | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Card Type | Material - Insulation | Termination Rows | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Black | Through Hole | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | Wire Wrap | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 35 | Non Specified - Dual Edge | Polyphenylene Sulfide (PPS) | 2 | Dual | 125 °C | -40 °C | Cantilever | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Gold | Black | Through Hole | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | Solder | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | 35 | Non Specified - Dual Edge | Polyphenylene Sulfide (PPS) | 2 | Dual | 125 °C | -40 °C | Cantilever | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | |||
EDAC Inc. | Gold | Black | Board Edge Straddle Mount | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | Solder Eyelet(s) | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 35 | Non Specified - Dual Edge | Polyphenylene Sulfide (PPS) | 2 | Dual | 125 °C | -40 °C | Cantilever | 10 Áin | 0.25 Ám | Card Extender | |||||
EDAC Inc. | Gold | Black | Through Hole | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | Solder Eyelet(s) | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | 35 | Non Specified - Dual Edge | Polyphenylene Sulfide (PPS) | 2 | Dual | 125 °C | -40 °C | Cantilever | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Gold | Black | Through Hole | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | Solder | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | 35 | Non Specified - Dual Edge | Polyphenylene Sulfide (PPS) | 2 | Dual | 125 °C | -40 °C | Cantilever | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Gold | Black | Through Hole | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | Solder Eyelet(s) | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 35 | Non Specified - Dual Edge | Polyphenylene Sulfide (PPS) | 2 | Dual | 125 °C | -40 °C | Cantilever | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Gold | Black | Through Hole Right Angle | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | Solder | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 35 | Non Specified - Dual Edge | Polyphenylene Sulfide (PPS) | 2 | Dual | 125 °C | -40 °C | Cantilever | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Gold | Black | Board Edge Straddle Mount | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | Solder Eyelet(s) | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 35 | Non Specified - Dual Edge | Polyphenylene Sulfide (PPS) | 2 | Dual | 125 °C | -40 °C | Cantilever | 10 Áin | 0.25 Ám | Card Extender | ||
EDAC Inc. | Gold | Black | Through Hole | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | Solder Eyelet(s) | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | 35 | Non Specified - Dual Edge | Polyphenylene Sulfide (PPS) | 2 | Dual | 125 °C | -40 °C | Cantilever | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Gold | Black | Through Hole | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | Solder Eyelet(s) | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 35 | Non Specified - Dual Edge | Polyphenylene Sulfide (PPS) | 2 | Dual | 125 °C | -40 °C | Cantilever | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
896-070 Series
70 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
