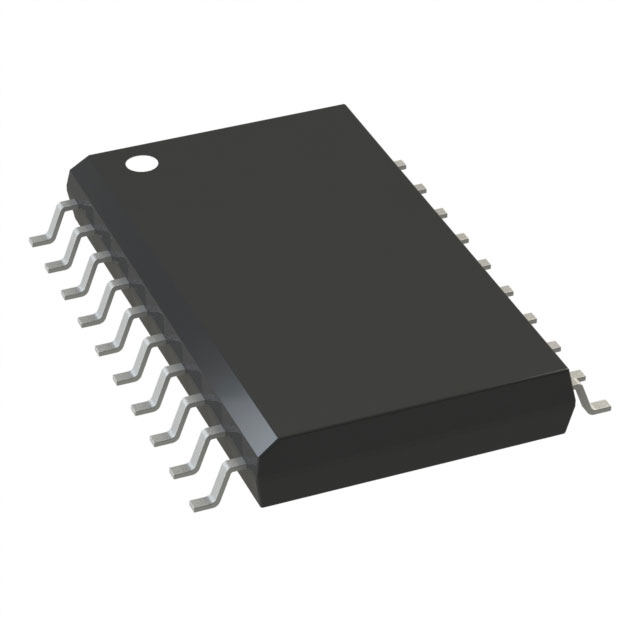

SY100EL56VZI TR

Obsolete

Microchip Technology

IC DIFF DIG MULTPL 2X2:1 20-SOIC

Search across all available documentation for this part.

Obsolete

Microchip Technology

IC DIFF DIG MULTPL 2X2:1 20-SOIC

Technical Specifications

Parameters and characteristics for this part

Specification	SY100EL56VZI TR

Circuit [custom]	2
Circuit [custom]	2:1
Independent Circuits	1
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	20-SOIC
Package / Case [y]	0.295 in
Package / Case [y]	7.5 mm
Supplier Device Package	20-SOIC
Type	Differential Digital Multiplexer
Voltage Supply Source	Dual Supply

Part	Package / Case	Package / Case [y]	Package / Case [y]	Supplier Device Package	Mounting Type	Circuit [custom]	Circuit [custom]	Independent Circuits	Type	Voltage Supply Source	Operating Temperature [Max]	Operating Temperature [Min]
Microchip Technology SY100EL56VZI TR	20-SOIC	0.295 in	7.5 mm	20-SOIC	Surface Mount	2	2:1	1	Differential Digital Multiplexer	Dual Supply	85 °C	-40 °C
Microchip Technology SY100EL56VZC	20-SOIC	0.295 in	7.5 mm	20-SOIC	Surface Mount	2	2:1	1	Differential Digital Multiplexer	Dual Supply	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Differential Digital Multiplexer 2 x 2:1 20-SOIC
