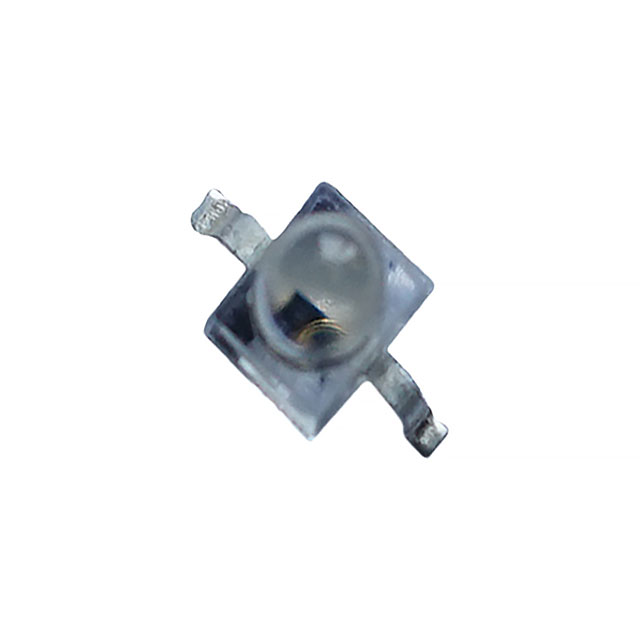

QBL912GC-IR2
ActiveQT Brightek (QTB)
LED IR 1.8MM 880NM RND TOP MT GW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBL912GC-IR2
ActiveQT Brightek (QTB)
LED IR 1.8MM 880NM RND TOP MT GW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBL912GC-IR2 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 50 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 2-SMD, Gull Wing |
| Radiant Intensity (Ie) Min @ If | 0.6 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 20 ° |
| Voltage - Forward (Vf) (Typ) | 1.4 V |
| Wavelength | 880 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.79 | |
| 10 | $ 0.55 | |||
| 100 | $ 0.40 | |||
| 500 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.79 | ||
| 10 | $ 0.55 | |||
| 100 | $ 0.40 | |||
| 500 | $ 0.33 | |||
| Tape & Reel (TR) | 1000 | $ 0.31 | ||
| 2000 | $ 0.29 | |||
| 3000 | $ 0.28 | |||
| 5000 | $ 0.27 | |||
| 7000 | $ 0.27 | |||
| 10000 | $ 0.26 | |||
| 25000 | $ 0.25 | |||
Description
General part information
QBL912 Series
Infrared (IR) Emitter 880nm 1.4V 50mA 0.6mW/sr @ 20mA 20° 2-SMD, Gull Wing
