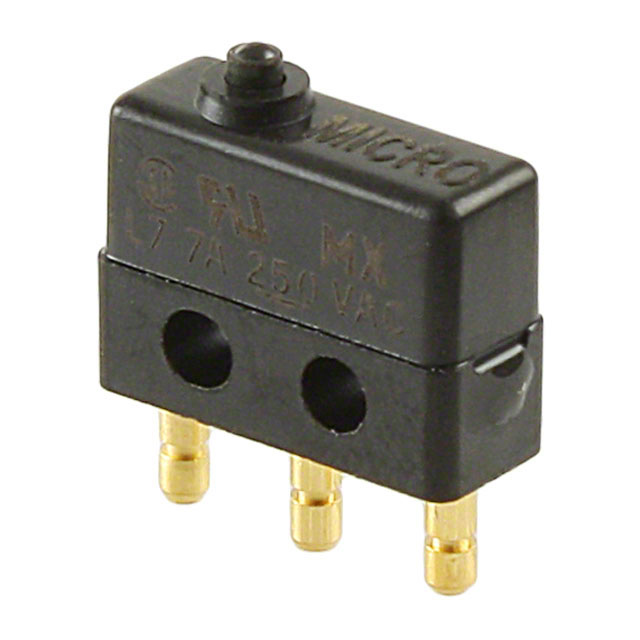

4SX1-H58

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 7A 250V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 7A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	4SX1-H58

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	7 A
Differential Travel	0.13 mm
Differential Travel	0.005 in
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	141 gf
Operating Position	8.13 mm
Operating Position	0.32 in
Operating Temperature [Max] [custom]	204 °C
Operating Temperature [Min] [custom]	-55 °C
Overtravel	0.004 in
Overtravel	0.1 mm
Pretravel	0.02 in
Pretravel	0.5 mm
Release Force	28 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.058 in (Round)
Voltage Rating - AC	250 V
Voltage Rating - DC	28 V

Part	Circuit	Voltage Rating - DC	Mechanical Life	Termination Style	Current Rating (Amps)	Overtravel	Overtravel	Differential Travel	Differential Travel	Pretravel	Pretravel	Release Force	Actuator Type	Mounting Type	Voltage Rating - AC	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Operating Position	Operating Position	Switch Function	Operating Force
Honeywell Sensing and Productivity Solutions 4SX1-H58	SPDT	28 V	1000000 Cycles	Quick Connect - 0.058 in (Round)	7 A	0.004 in	0.1 mm	0.13 mm	0.005 in	0.02 in	0.5 mm	28 gf	Round (Pin Plunger)	Chassis Mount	250 V	204 °C	-55 °C	8.13 mm	0.32 in	On-Mom	141 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 23.01

General part information

Switch SPDT Chassis Mount
