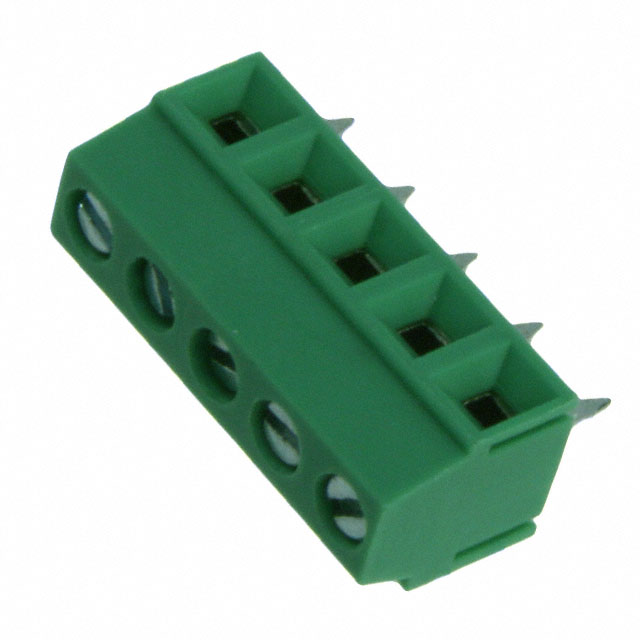

YO0521500000G
ActiveAmphenol Anytek
TERM BLK 5P SIDE ENT 3.81MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YO0521500000G
ActiveAmphenol Anytek
TERM BLK 5P SIDE ENT 3.81MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YO0521500000G |
|---|---|
| Clamp Material - Plating | Copper Alloy - Nickel Plated |
| Color | Green |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 10 A |
| Features | Interlocking (Side) |
| Housing Material | Thermoplastic |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.15 in |
| Pitch [x] | 3.81 mm |
| Positions Per Level | 5 |
| Screw Material - Plating | Steel, Zinc Plated |
| Screw Thread | M2 |
| Torque - Screw | 0.2 Nm |
| Torque - Screw | 1.7 Lb-In |
| Voltage | 300 V |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 16 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.47 | |
| 10 | $ 1.04 | |||
| 25 | $ 0.97 | |||
| 50 | $ 0.88 | |||
| 100 | $ 0.87 | |||
| 250 | $ 0.74 | |||
| 500 | $ 0.70 | |||
| 2120 | $ 0.56 | |||
| 6360 | $ 0.50 | |||
Description
General part information
YO05 Series
5 Position Wire to Board Terminal Block Horizontal with Board 0.150" (3.81mm) Through Hole
