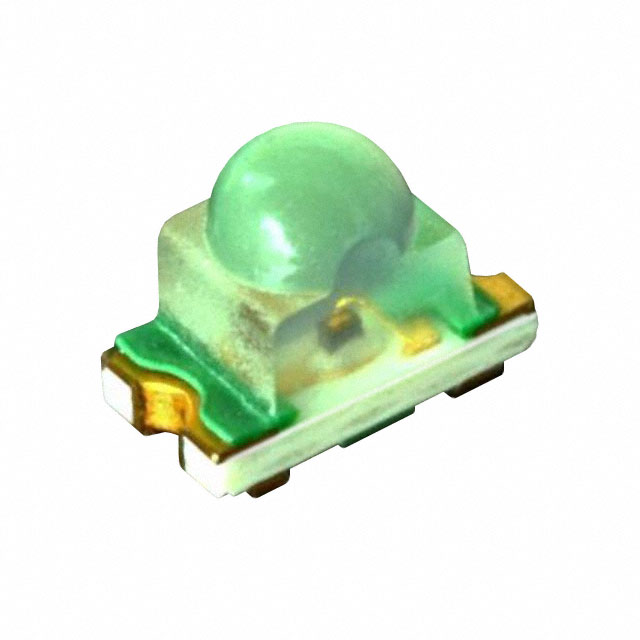

VTAN1116P-TR
ActiveStanley Electric Co
EMITTER IR 940NM 50MA SMD
Deep-Dive with AI
Search across all available documentation for this part.
VTAN1116P-TR
ActiveStanley Electric Co
EMITTER IR 940NM 50MA SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VTAN1116P-TR |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 50 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 0603 (1608 Metric) |
| Radiant Intensity (Ie) Min @ If [Min] | 1.8 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle [custom] | 40 ° |
| Voltage - Forward (Vf) (Typ) | 1.25 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.40 | |
| 10 | $ 0.27 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.40 | ||
| 10 | $ 0.27 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| Tape & Reel (TR) | 3000 | $ 0.09 | ||
| 6000 | $ 0.09 | |||
| 15000 | $ 0.08 | |||
| 30000 | $ 0.07 | |||
| 75000 | $ 0.07 | |||
| 150000 | $ 0.07 | |||
Description
General part information
VTAN1116 Series
Infrared (IR) Emitter 940nm 1.25V 50mA 1.8mW/sr @ 20mA 40° 0603 (1608 Metric)
Documents
Technical documentation and resources
No documents available
