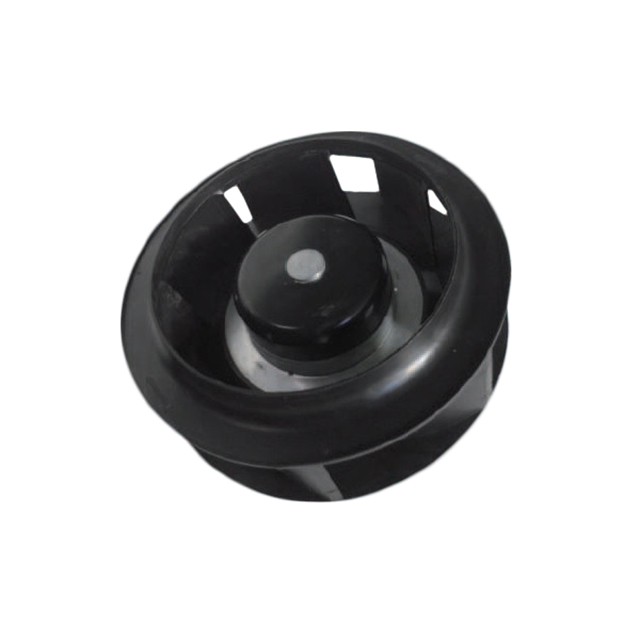

MSI1769H48B1+7-BBR
ActiveMechatronics Bearing Group
FAN IMP MTRZD 175X69MM 48VDC
Deep-Dive with AI
Search across all available documentation for this part.
MSI1769H48B1+7-BBR
ActiveMechatronics Bearing Group
FAN IMP MTRZD 175X69MM 48VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSI1769H48B1+7-BBR |
|---|---|
| Air Flow | 345 CFM |
| Air Flow | 9.66 m³/min |
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 2.3 A |
| Fan Type | Motorized Impellers |
| Features | Speed Sensor (Tach), Auto Restart, Voltage Control |
| Material - Blade | Plastic |
| Noise | 72 dB(A) |
| RPM | 4000 RPM |
| Size / Dimension [diameter] | 175 mm Dia |
| Static Pressure | 448.4 Pa |
| Static Pressure | 1.8 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Weight | 2.9 lbs |
| Weight | 1.3 kg |
| Width [x] | 69 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 100.96 | |
| 10 | $ 90.01 | |||
| 25 | $ 85.99 | |||
| 50 | $ 83.06 | |||
| 100 | $ 80.23 | |||
Description
General part information
MSI1769 Series
Fan Motorized Impellers 48VDC Round - 175mm Dia Ball 345.0 CFM (9.66m³/min) 3 Wire Leads
