N2516-6V0C-RB-WD

Active

3M (TC)

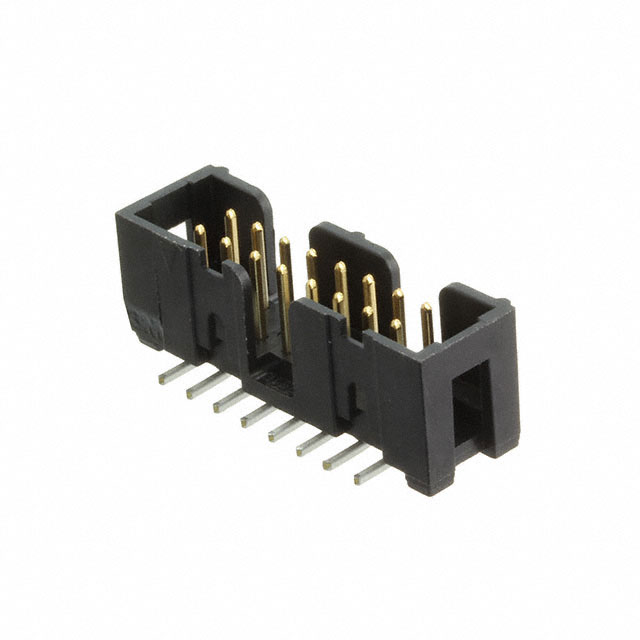

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 16 CONTACTS, SURFACE MOUNT STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

N2516-6V0C-RB-WD

Active

3M (TC)

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 16 CONTACTS, SURFACE MOUNT STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N2516-6V0C-RB-WD

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Push-Pull
Features	Pick and Place, Keying Slot
Insulation Color	Black
Insulation Height [z]	9.91 mm
Insulation Height [z]	0.39 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

N2516 Series

Part	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Mounting Type	Shrouding	Insulation Material	Connector Type	Number of Positions Loaded	Number of Rows	Contact Finish - Post	Insulation Height	Insulation Height	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Current Rating (Amps)	Style	Number of Positions	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]
3M (TC) N2516-5003-RB	3.94 mm	0.155 "	UL94 V-0	Through Hole Right Angle	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	All	2	Tin	0.338 in	8.59 mm	Push-Pull	105 ░C	-55 °C	Black	Keying Slot	2.54 mm	0.1 in	Gold	1.75 A	Board to Board Cable	16	Copper Alloy	200 µin	5.08 µm	Solder	Square	30 Áin	0.76 Ám	Male Pin	0.1 in	2.54 mm
3M (TC) N2516-6V0C-RB-WD			UL94 V-0	Surface Mount	Shrouded - 4 Wall	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Header	All	2	Tin			Push-Pull	105 ░C	-55 °C	Black	Keying Slot Pick and Place	2.54 mm	0.1 in	Gold	1.75 A	Board to Board Cable	16	Copper Alloy	200 µin	5.08 µm	Solder	Square	30 Áin	0.76 Ám	Male Pin	0.1 in	2.54 mm	9.91 mm	0.39 in
3M (TC) N2516-5003-UB	3.94 mm	0.155 "	UL94 V-0	Through Hole Right Angle	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	All	2	Tin-Lead	0.338 in	8.59 mm	Push-Pull	105 ░C	-55 °C	Black	Keying Slot	2.54 mm	0.1 in	Gold	1.75 A	Board to Board Cable	16	Copper Alloy	200 µin	5.08 µm	Solder	Square	30 Áin	0.76 Ám	Male Pin	0.1 in	2.54 mm
3M (TC) N2516-6003-UG	3.94 mm	0.155 "	UL94 V-0	Through Hole	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	All	2	Tin-Lead			Push-Pull	105 ░C	-55 °C	Black	Keying Slot	2.54 mm	0.1 in	Gold	1.75 A	Board to Board Cable	16	Copper Alloy	200 µin	5.08 µm	Solder	Square	15 µin	0.38 µm	Male Pin	0.1 in	2.54 mm	9.91 mm	0.39 in
